Road Frames

A sweet beast designed for chasing good times, the Gorilla Monsoon builds on All-City’s proven cross geometry to handle camping, dirt touring, and exploring the unknown. Built around 27.5 x 2.4" tires and offered in seven frame sizes, it comfortably accommodates our smallest and tallest riders for long days in the saddle. Features like stealth dropper post routing and full touring mounts round out this elegantly styled steed. - 612 Select Tubing – Selected specifically for sporty handling on the course, comfort on tours, and maximum fun - Geometry – adapted from All-City CX geo, plus the ability to support some load - 73mm bottom bracket allows for a wider chainring option and ample tire clearance - Stealth dropper routing - Tire clearance – 27.5 x 2.4" or 700c x 42mm - Bi-plane fork crown features four-point rack mount and mounts for fender - Flat-mount brakes, front and rear thru-axles, 1-1/8" head tube, All-City Shot Collar, three water bottle mounts - Seven frame sizes: 43, 46, 49, 52, 55, 58, and 61cm

Designed to handle double track, gravel, bikecamping, and just plain chasing good times, this nimble, do-it-all dirt solution is ready to send cross racers, dirt tourists, and backcountry explorers far into the unknown with comfort, style, and elegance. Available in seven frame sizes — including 43cm for the first time — the Gorilla Monsoon is tweaked for long days in the saddle and built around 27.5 x 2.4" tires with clearance for 700c x 42mm. - Made from All-City's 612 Select steel tubing with signature thru-axle dropouts - Features a matching bi-plane crown steel fork - Fork is compatible with Surly 8- and 24-Pack racks - Mounts for front and rear racks and fenders - Flat-mount disc brakes - Three water bottle mounts on the frame - Signature All-City Shot Collar seatpost clamp - E.D. coated for durability and rust prevention

The Zig Zag is All-City’s answer to what a Modern Endurance Steel Road Bike should be. Elegant and eye-catching, it’s a ripping-fast and efficient machine built to shield the rider from road chatter and unnecessary fatigue. Designed for speed, style, and maximum comfort, the Zig Zag allows riders to go further, faster, and have more fun. - A.C.E. Tubing — Our proprietary heat-treated, air-hardened, extruded steel tubing that we custom designed for riding and racing - Whisky No.9 RD+ carbon fork - A classic road silhouette blends with a contemporary road geo to balance power with comfort for long days in the saddle or attacks off the front - Clearance for 700c x 35mm tires without fenders; 700c x 32mm with fenders - Custom head badge, Signature dropouts, Signature brazed-on seat collar, pump peg, two bottle bosses, and hidden fender mounts

The All-City Cosmic Stallion is ready for speedy gravel jaunts and all-day epics. With additional fork-mounted cargo support, this race-ready steel machine sets a new standard for beauty and functionality. Thoroughly modern, classically styled, all on a lightweight disc-brake frameset. - Crafted from All-City’s proprietary heat-treated, air-hardened, and custom-extruded A.C.E. steel tubing - Whisky No.9 CXLR Disc 12 Tapered Fork - 12mm thru-axles and flat-mount disc brakes - All-City Signature Sliding 2-For-1 Dropout - Includes single speed and geared dropout plates - Removable All-City fender bridge - Modular external cable routing - Three bottle cages, rear rack mounts, front and rear fender eyelets - Tire Clearance: 700c x 42mm or 650b x 47mm (both with or without fenders)

The All-City Cosmic Stallion GRX is ready for speedy gravel jaunts and all-day epics. With additional fork-mounted cargo support, this race-ready steel machine sets a new standard for beauty and functionality. Thoroughly modern, classically styled, all on a lightweight disc-brake frameset. - Crafted from All-City's proprietary heat-treated, air-hardened, and custom-extruded A.C.E. steel tubing - Whisky No.9 CXLR Disc 12 Tapered Fork - 12mm thru-axles and flat-mount disc brakes - All-City Signature Sliding 2-For-1 Dropout - Removable All-City fender bridge - Modular external cable routing - Three bottle cages, rear rack mounts, front and rear fender eyelets - Tire Clearance: 700c x 42mm or 650b x 47mm (both with or without fenders)

The perfect escape vehicle. If it’s marked on the map, the Beyond can probably follow it. Sporting multiple frame and fork mounting points and mountain bike-width tire clearance, it’s a reliable companion for days, weeks, or months spent in the middle of nowhere.

Putting more air between you and the trial, the Hook EXT is the choice when you're unsure of the terrain, or know you want to cut loose. The Hook's hoodlum tendencies given free rein. Using a Columbus steel frame, dedicated carbon fork, and lively 27.5-inch wheels, the EXT can batter through territory out-of-bounds to other drop handlebar bikes. As capable on backcountry campouts as it is on post-work blasts, the Hook EXT remains the choice when you're unsure of the terrain, but know you want to have fun riding it. HIGHLIGHTS - Columbus Cromor double-butted frame - Full carbon tapered fork with internal light cable routing, through axles and triple cage mounts. - Integrated light cable routing and rear light mount. - Toptube bag direct mounts, triple cage mount on downtube and seattube for optimized bottle position, bottle cage mounts underneath the downtube, and rear rack mounts. - Front derailleur compatible. - 12 mm through axles front and rear.

The heart of a light and versatile expedition bike, and the endpoint of our Hook platform. This titanium version retains the vigor of our hooligan tourer and distills it into a light and comfortable frame. Able to accommodate multiple-wheel sizes, along with myriad luggage configurations, it’s ready to be the centerpiece in any number of different builds. Paired with our light yet staunch full-carbon EXT V2 fork, this provides triple cage mounts, along with steadfast handling in rough conditions. HIGHLIGHTS: - Titanium 3Al-2.5V frame with T47 BB shell fender mounts and through axles. - Full carbon tapered fork with internal light cable routing, through axles and triple cage mounts. - Sram UDH derailleur hanger. - Toptube bag direct mounts, triple cage mounts on downtube and seattube for optimized bottle position, bottle cage mounts underneath the downtube, and rear rack mounts. - CNC yoke for maximum tire and chainring clearance. - Ovalized toptube for supreme steering precision and comfort. - Biaxially ovalized downtube for optimized power transfer and steering precision. - Front derailleur compatible. - 12 mm through axles front and rear.

This is a no-holds-barred triathlon machine—no restrictions, no limitations. The CADEX Tri frameset is designed, engineered and put to the test by the world’s fastest triathletes in a bold quest to push the sport forward. Created in conjunction with Ironman World Champion Kristian Blummenfelt’s attempt to break the seven-hour mark for the Ironman distance, a project dubbed Sub7, it features a radical monocoque frame, wide-spread fork legs and horizontal seatstays. The massive down tube doubles as a race-ready storage system, making hydration and nutrition easily accessible. And its wide-ranging adjustability makes it quick and easy to dial in over 1,000 fit configurations for personalized performance PERSONALIZED FIT - The CADEX Tri frameset makes it easier for athletes of all heights and body dimensions to achieve a perfect fit. Using real-world dimensional as well as stack and height data collected from pro and amateur triathletes, CADEX created five frame sizes and then configured ways for any rider, no matter what frame size they choose, to easily adjust critical fit factors. ENDURANCE AERODYNAMICS - Aero performance goes beyond wind-tunnel data. Using AeroSystem Shaping Technology to create a radical wide-spread, bladed fork, horizontal seatstays and other drag-reducing frame features—along with optimal rider position for Ironman racing—CADEX Tri is about achievable real-world gains. RACE-READY INTEGRATION - The unique chassis of the CADEX Tri frameset—a massive down tube with no top tube—offers a complete hydration, nutrition and tool storage solution fully integrated into the frame. This design lets riders hydrate and refuel quickly and conveniently from the seated aero riding position while remaining totally self-sufficient on the course. TOTAL EFFICIENCY - Engineered with the highest grade T1000 carbon fiber and cutting-edge layup techniques, the CADEX Tri frameset boasts class-leading pedaling and torsional stiffness with a total weight of just 4577 grams. Combined with ultra-adaptable fit, groundbreaking endurance aero technology, and a completely integrated hydration and nutrition system, the result is zero watts wasted. COMPLETE TRAVEL SOLUTION - The CADEX Tri frameset minimizes the amount of disassembly and reassembly needed and comes with a purpose-built, high-impact resistant Topeak travel case featuring airport-friendly wheels, a full interior protection system and built-in work stand.

The Cervélo C3 Disc Road Frameset is designed to deliver a versatile and comfortable ride while maintaining the performance characteristics expected from a road bike. Here are some key features and aspects of the Cervélo C3 Disc Road Frameset: Frame Construction: The frame is typically crafted from high-quality carbon fiber, known for its optimal balance of strength, stiffness, and light weight. Cervélo is renowned for its expertise in engineering frames for performance, and the C3 Disc Frameset likely reflects the brand's commitment to cutting-edge design and technology. Endurance Geometry: The C3 is generally categorized as an endurance road bike, suggesting a more relaxed geometry compared to pure racing bikes. This geometry is intended to provide a more comfortable riding position, making it well-suited for long rides and varied road conditions. Disc Brake Compatibility: As indicated by the "Disc" in the name, the frameset is designed to accommodate disc brakes. Disc brakes offer consistent and powerful braking performance, particularly in diverse weather conditions. Versatility: The Cervélo C3 is often positioned as a versatile road bike capable of handling a variety of surfaces, including rough roads and gravel. This versatility makes it suitable for riders who want the option to explore beyond smooth pavement. Internal Cable Routing: Many modern road framesets, including those from Cervélo, often feature internal cable routing. This design not only contributes to a clean and streamlined appearance but also helps protect cables from the elements, ensuring smooth shifting and braking performance. Thru-Axles: Thru-axles are commonly used in disc brake road bikes for enhanced stiffness and stability. They provide a more secure wheel attachment compared to traditional quick-release systems. Tire Clearance: The Cervélo C3 frameset likely provides ample tire clearance, allowing riders to use wider tires for improved comfort and traction, especially on rough roads or gravel.

HAUL ASS, NOT CARGO In 2019, Áspero took the gravel world by storm, heralding a “new era of speed in gravel.” Fun, but flat out. The new Áspero remains true to its original brief, but with some improvements: a threaded BB shell, neater cable routing, and a UDH-compatible derailleur hanger for those who want to use SRAM’s Transmission drivetrains. And it’s more aero, of course. In the case of Áspero, aerodynamic performance is less about pure speed as a result of drag reduction, and more about conservation of energy. After a big day in a headwind, the three watts saved over the previous Aspero might add up to one less energy gel your stomach has to digest—WORTH IT. In addition to the drag reduction, we also dropped the seat stays to give a bit more compliance out back, and reduced front-end stiffness slightly to make the last hours of a long race less painful. Between those dropped seat stays, we added in a bit more clearance for mud, too, taking what we learned from R5-CX (and the Unbound mudfest in 2023). It’s a lot of seemingly small improvements, but they add up to a lot. The result is a bike that feels a lot like the original Áspero, but is faster, more comfortable, and more versatile. THREADED BOTTOM BRACKET Aspero uses the asymmetrical T47a threaded bottom bracket we pioneered on R5-CX. It’s a simple, rider-serviceable interface that allows us to deliver the benefits of BBRight in a more user-friendly form. UNIVERSAL DERAILLEUR HANGAR We used SRAM’s Universal Derailleur Hanger (UDH) standard on the new Aspero. It’s ideal if you want to live your best ‘business in the front, party in the back’ life with one of SRAM’s Transmission drivetrains today, and ensures compatibility for future drivetrain developments. INTERNAL CABLE ROUTING Aspero shares the same bearing dimensions as R5, Soloist, R5-CX, and Caledonia, which means you can use any combination of bearing caps and stems. Want a super-racy, fully-internal look? Grab the ST31 and HB13 from R5.

THE EVERYDAY BREAKAWAY BIKE The Soloist. It’s a name from deep in our history, but immediately familiar to anyone with bike racing memories extending back to the early-2000s. It was the weapon of choice for top World Tour contenders on CSC and the Cervelo Test Team, and we’re bringing it back for a new generation. The new Soloist is designed for the week-in, week-out rider and racer who can only justify one high-performance bike. It balances light weight and aerodynamic advantages to deliver a bike that really is 'just right'. Soloist comes in a hair lighter than S5, but significantly more aerodynamic than R5, and borrows the threaded bottom bracket standard you find on the R5-CX. It’s a race bike that can accommodate mechanical and electronic shifting, can hammer out the training miles in all weather, and yet still has the chops to leap off the front at that decisive moment. That’s the Soloist. LOOKS LIKE A RACE BIKE, RIDES LIKE A RACE BIKE We took the handling geometry for the Soloist directly from R5. The R5 is beloved by pros and amateurs alike for its poise, stability, and precision when that killer climb turns into an even more killer descent. Soloist benefits from our decades of race bike geometry development, and comes out of the gate ready to go. FAST LIKE S5, LIGHT LIKE R5 Soloist sits right between S5 and R5 on the performance scale, while having a price tag that’s less World Tour, more Road Trip. It’s about 250g heavier than R5, and 250g lighter than S5. It’s 190g slower than S5, but 126g faster than R5. You get the idea. It’s the ‘just-right’ answer for the rider trying to find a smart, intentional compromise. HIDDEN FROM THE WIND, NO BLEED NECESSARY The cable routing is inside the frame for aerodynamics, but doesn't go through the stem. We developed our own system that threads the cables under the stem, but through the bearing cap. Whether your position changes or you loan the bike to a friend who uses a different stem length, you won't need to bleed the brakes to swap the stem. CLEARANCE TO BUZZ THE TOWER The Soloist fits tires up to 34mm (measured), and wheels wide enough to support them.

DESCENDED FROM GREATNESS Take one look at the all-new P-Series, and you’ll notice a striking resemblance to our flagship TT bike, the P5. P-Series benefits from all the racing, wind tunnel time, and testing required to make the P5 the fastest TT bike in the World Tour, but adds a couple features that make it a perfect companion for a triathlon of any distance. P-Series uses a fork with a D-shaped steerer tube and round stem interface. This means you can use whichever basebar and extensions you prefer, and make changes if your fit or preference changes. It’s also significantly more adaptable if you have very specific fit requirements. Increased wheel and tire clearance, reduced aerodynamic drag, neater cable routing, and Cervelo’s first internal frame storage all add up to create the bike of choice for those looking to make the most of the time between T1 and T2. FREE SPEED The new P-Series frame is 5.9 grams faster than the outgoing one, but the added tire clearance makes room for the Reserve 52/63 wheels, and 29mm Vittoria tires, which combine for a 30 grams or 3.5 watts savings vs the Reserve 50/Vittoria 28 combo. IN-FRAME STORAGE New this year on the P-Series, the in-frame storage is designed for a tube, small multi-tool, and a CO2 canister. The hatch is easily removable with or without a bottle in place—just flip the lock and pull. FUEL FOR THE RUN In addition to the all-new in-frame storage, we still ship every P-Series with the Smartpak 400, our top tube-mounted bento box, which makes fueling on the bike much simpler without sacrificing aerodynamics. FIT FOR SPEED The P-Series is all about adapting to the athlete. Maximum stack increased to 53mm, and we include spacers to bring the basebar up that high. Fitting and positions are evolving, and P-Series offers the most flexibility in an incredibly fast package.

FLAT OUT Designed for long, fast gravel races, Aspero-5 is for those who toe the start line with purpose, and aim to be in the group straightaway. Our engineers like to say, “if it looks fast, it probably is.” It’s a bit tongue-in-cheek, but there’s some truth to it, and Aspero-5 looks fast standing still. The cables are tucked neatly inside the stem and headtube, there’s a hint of a wheel cutout, and all of the tube shapes come from our race-proven library of shapes. LIGHTWEIGHT SPEED Some might say aero doesn’t matter on a gravel bike, but if you’ve battled a headwind across an open prairie, the thirty-two grams of drag you’ll save with the Áspero-5 come as a welcome respite. Most gravel racing is done without the benefit of a World Tour peloton—or World Tour tactics—and when it’s your nose in the wind all day, it’s nice to know your bike’s shouldering a bit of the load. TWO-POSITION ADJUSTMENT Trail—front-wheel response to rider input—is the most critical factor in high-velocity handling. Flipping the two-position "Trail Mixer" to compensate for the difference in circumference between a 650b and 700c tire maintains consistent handling by maintaining consistent trail figures. MULTIPLE CONFIGURATIONS We designed Aspero with clearance for up to 700c x 40mm tires or 650b x 49mm tires. Of course, there are variables—rim width, tire casing, and tread depth—which will affect final clearance. We (and the International Organization for Standardization, or ISO), always recommend 4mm of clearance between the tire and frame. **New Shimano road (not gravel) 12 speed front derailleurs reduce tire clearance in the rear of the frame to 700 x 38c or 650b x 45c. SRAM INTEGRATED POWER Red and Force builds include Quarq Zero powermeters integrated into the crank. The integration of a powermeter results in better stiffness, lighter weight, and improved accuracy over aftermarket solutions—and the DZero delivers power measurement accurate to +/- 1.5%, even in variable temperatures.

The Caledonia-5 is the bike we keep reaching for when we know the odometer's going well past the triple-digit mark. Long rides invariably have some smooth tarmac, some junk pavement over backroads, a cutty singletrack connector, and maybe even your own local Strade Bianche sector. So we built a bike that could take on all of them, do it well, and fit fenders in case the ominous clouds turn into a downpour 130km into your day. - Aero Cable Management The Cervélo frame, fork, handlebars, and associated components are designed to hide brake and shift control lines (mechanical, electrical, and hydraulic) from the wind for improved aerodynamics, without sacrificing usability or performance. - Performance Fit The Caledonia-5's integrated stem and two bearing cap options allow for stacks ranging between an aggressive 7mm and a relaxed 22mm without the use of spacers. With a wider fit coordinate range (stack) of 580mm to 687mm, the Caledonia can be slammed or more upright. All while looking and being seamlessly fast in the wind. - Removable FDM Our bolt-on front derailleur mount is made from high-strength aluminum alloy and attaches to the frame with two countersunk screws. This allows for easy replacement in the event of damage but also enables you to adapt to new standards as they become available or remove the front derailleur mount completely if you choose a 1x system. - Integrated Accessory Mounts Integrated mounts enable the use of fenders, lights, and computers without compromising the aerodynamics or structure of your bike. The built-in mount systems provide a simple and clean-looking solution. - SRAM Integrated Power Red and Force build include Quarq Zero power meters integrated into the crank. The integration of a power meter results in better stiffness, lighter weight, and improved accuracy over aftermarket solutions—and the DZero delivers power measurement accurate to +/- 1.5%, even in variable temperatures.

On the fringes of cycling and triathlon, already endurance-oriented sports, there are athletes pushing their bodies and equipment to the limit. Ultra-distance, but ultra-fast. We call these Big, Stupid Rides, and since the introduction of the Caledonia in 2020, athletes around the world have been exploring just how big and just how stupid those rides can be. These athletes reach for the Caledonia-5. It’s built to handle long-distance, high-speed racing—with fit and handling geared toward comfort, but without sacrificing the Cervelo race bike feeling. For the new Caledonia-5, we focused on improvements that would be meaningful for the people pushing it to its limits. The biggest thing you’ll notice is the addition of the in-frame storage first seen on P-Series. This isn’t designed to fit a burrito—there’s only room for a small multi-tool, tube, and a CO2 canister. Then we looked to comfort: The seat stays are dropped, similar to Aspero, which makes that rear triangle more acute, and more vertically flexible. At the same time, there’s a bit more downtube stiffness to maintain that pro-level responsiveness Caledonia is known for. You can still stuff some big tires (36mm) in there, and every bike comes with fender mounts. In Frame Storage - New this year on the Caledonia-5, the in-frame storage is designed for a tube, small multi-tool, and a CO2 canister. Out of sight, out of mind, until your tire makes the bad noise.The hatch is easily removable even with gloves on—just flip the lock and pull. Aerodynamics - All Cervélo bikes are aero bikes. And when you’re on three days of panini and candy, running on fumes into Checkpoint One, you’ll appreciate the free speed. The completely internal housing and aero tube shapes team up to help you do battle against the wind. Refine and Enhance - Caledonia-5 is meant for all-day riding, high-pace group rides, and routes featuring less-than-ideal tarmac.We kept all the good stuff, but made some key improvements. The bearing caps are now split so you can swap between the high and low bearing cap without bleeding the brakes if you need to make a fit change.

Our engineers like to joke that, "if it looks fast, it probably is." But there's some truth to that, and Áspero-5 looks fast standing still. No cables in the wind, tube shapes from our aerodynamically-proven library, and a hint of a cut-out in the seat tube, all add up to a bike that proves the adage. - Lightweight Speed Some might say aero doesn't matter on a gravel bike, but if you've battled a headwind across an open prairie, the thirty-two grams of drag you'll save with the Áspero-5 come as a welcome respite. Most gravel racing is done without the benefit of a World Tour peloton—or World Tour tactics—and when it's your nose in the wind all day, it's nice to know your bike's shouldering a bit of the load. - Two Position Adjustment Trail—front-wheel response to rider input—is the most critical factor in high-velocity handling. Flipping the two-position "Trail Mixer" to compensate for the difference in circumference between a 650b and 700c tire maintains consistent handling by maintaining consistent trail figures. - Multiple Configurations We designed Aspero with clearance for up to 700c x 40mm tires or 650b x 49mm tires. Of course, there are variables—rim width, tire casing, and tread depth—which will affect final clearance. We (and the International Organization for Standardization, or ISO), always recommend 4mm of clearance between the tire and frame. **New Shimano road (not gravel) 12-speed front derailleurs reduce tire clearance in the rear of the frame to 700 x 38c or 650b x 45c. - SRAM Integrated Power Red and Force builds include Quarq Zero power meters integrated into the crank. The integration of a power meter results in better stiffness, lighter weight, and improved accuracy over aftermarket solutions—and the DZero delivers power measurement accurate to +/- 1.5%, even in variable temperatures.

R5 has one job—get to the top, fast. But for all the glory and fanfare that comes with a summit finish, they’re rarely the only climb of the day. And while a race isn’t usually won on a descent, they can certainly be lost. A climbing bike that can't carve a hairpin is a bit like a cup of decaf coffee. This is the fourth iteration of the R5, and while weight and stiffness have varied over the years, the handling, poise, and unmatched prowess on a descent have been consistent since day one. Faster In Every Direction - The new R5 frame is 130g lighter than the previous model—a 16% reduction from an already-light frame. And while aerodynamics weren’t a focus with this frame the way they would be on an S5 or P5, bringing the cables inside reduced drag by 25g. Less Stiff, Still Fast - The R5 is stiff, but not too stiff—the Goldilocks of climbing bikes if you will. Poise, stability, and power transfer that feels “just right” and keeps you fresh and ready to take on the road ahead.

The S5 has one job to the line before everyone else. Under the likes of Wout van Aert, Marianne Vos, and Christophe LaPorte, the new model has already proven itself as a tool without equal. In the 2022 Tour de France, this bike propelled Wout to the highest ever Points Classification score of the modern era. At 480, Wout was some 194 points ahead of his nearest rival-tangible proof that Cervelo keeps delivering aerodynamic gains to our World Tour athletes. The new S5 has reduced drag by 65 grams and increased the frame's surface area while still reducing overall weight. The deeper frame sections maximize the shapes allowed by the UCI. Meanwhile, the iconic V-stem has been further refined and a new fork designed to simplify the entire front end. What's more, a ground-breaking new wheel design concept has been co-developed with Reserve to increase stability and reduce drag in turbulent aero conditions.

THE FASTEST BIKE OF THE MODERN ERA The S5 has one job—get to the line before everyone else. Under the likes of Wout van Aert, Marianne Vos, and Christophe LaPorte, the new model has already proven itself as a tool without equal. In the 2022 Tour de France, this bike propelled Wout to the highest ever Points Classification score of the modern era. At 480, Wout was some 194 points ahead of his nearest rival—tangible proof that Cervélo keeps delivering aerodynamic gains to our World Tour athletes. The new S5 has reduced drag by 65 grams, and increased the frame’s surface area while still reducing overall weight. The deeper frame sections maximize the shapes allowed by the UCI. Meanwhile the iconic V-stem has been further refined and a new fork designed to simplify the entire front end. What’s more, a ground-breaking new wheel design concept has been co-developed with Reserve to increase stability and reduce drag in turbulent aero conditions. V IS FOR VELOCITY In pursuit of speed, everyone wants to try different positions to find their most aggressive fit. The S5's iconic V-stem not only inspires confident handling at high speeds, it's now also remarkably simple to dial in your perfect set-up. All the necessary spacers come with the bike, and there’s now only one bolt length, reducing complexity and making the system 53g lighter in the process. TIRE CLEARANCE Wider wheels and tires are faster aerodynamically, and more comfortable to boot. S5 comes specced with 28mm tires but has clearance for up to a 34mm (measured) tire. The frame is optimized to complement the wider Reserve 52/63 turbulent aero wheels. In addition to the handling benefits, this saves over 5 watts compared to the previous Reserve wheelset. FRAME ENHANCEMENTS The UCI’s new regulations on aerodynamic design allowed us some additional room to deepen our aero profiles and squeeze 65 more grams of drag performance out of what is already the fastest aero bike on the market. You’ll notice a deeper head tube and BB area, and more aggressive shaping on the trailing edges of the tubes. Since the new S5 is only compatible with electronic shifting, we were able to tidy the dropout a bit and update the shaping all over the bike. HANDLEBAR REFINEMENT We’ve improved the comfort of the handlebar and tweaked the shape to get a perfectly flat bar-to-hood transition. We now use a two-bolt interface that allows for infinite tilt adjustments between 0 and 5 degrees. KEEPING IT SIMPLE Bike fitters at every level are moving away from longer-offset seat posts, and the new S5 comes stock with a 15mm offset post on most sizes (vs 25mm offset on outgoing S5). The old seat posts are forward-compatible, and we’ll keep the 400mm-long, 25mm offset post in stock for those looking for a more extreme fit. SRAM INTEGRATED POWER Red and Force builds include Quarq Zero powermeters integrated into the crank. The integration of a powermeter results in better stiffness, lighter weight, and improved accuracy over aftermarket solutions—and the DZero delivers power measurement accurate to +/- 1.5%, even in variable temperatures. SORRY CAMPY FANS The 2022 S5 Disc frameset is designed to accommodate electronic shifting groupsets that use connectors up to 6mm in diameter, therefore Campagnolo EPS is not compatible with this frameset. Mechanical shifting groupsets are also not compatible with this frameset.

FAST GETS FASTER P5 is a contre la montre catalyst. It’s made for one thing—helping you go as fast as possible between Point A and Point B. As at home on the Big Island as it is in a race-critical time trial at the Tour de France, the P5 enables exceptional performances. The past decade of elite road racing has shown the importance of being able to deliver a strong time trial late in a Grand Tour, and the P5 was a key part of Team Jumbo-Visma’s Giro d’Italia and Tour de France wins in 2023. On the new bike, we focused on creating a fast platform that could be made faster with the latest wheels and cutting-edge fit adaptations. There’s room for a 34mm tire on wide wheels, which improve aerodynamics and reduce rolling resistance. The basebar is lower to reduce CdA but possible stack has increased, and the extensions can now be adjusted between 0 and 30 degrees in five-millimeter increments. For triathletes, we include a variety of storage options, because half the battle is taking in sufficient calories to deliver a strong marathon. Also new on this bike? A size 61 to help all of our tall friends achieve a better fit. SIMPLICITY & ADJUSTABILITY The new one-piece front end (first pioneered on the S5) is simpler to assemble and adjust, and stack is now adjustable up to 40mm, while the basebar height drops by 10mm to minimize frontal area. The new riser increases tilt adjustability, 0 to 30 degrees, in 5-degree increments. SPEED The new P5 frame is about a watt faster aerodynamically than the previous model, and has clearance for 34mm tires. That clearance means plenty of room for Reserve’s new 77/88 wheelset, and Vittoria’s 29mm tire. which saves about 4 watts over the previous Reserve/Vittoria pair for a total system savings of about 5 watts. COMFORT & CONTROL The new armrests and pads on the P5 are wider, taller, and thicker than before. It’s definitely more comfortable, but it’s also more confidence-inspiring. More surface area here leads to better control, which means more time in the most aerodynamic position possible. COMPLIANCE The new fastback seat stay design reduces vertical stiffness by about 22% (while maintaining the lateral stiffness needed for power transfer). The TT position is unforgiving (to say the least), but the new P5 will help you roll into T2 a lot fresher. SRAM INTEGRATED POWER Red and Force builds include Quarq Zero power meters integrated into the crank. The integration of a power meter results in better stiffness, lighter weight, and improved accuracy over aftermarket solutions—and the DZero delivers power measurement accurate to +/- 1.5%, even in variable temperatures.

CLIMB, CORNER AND DESCEND WITH SPEED AND EFFICIENCY. FROM THE MOUNTAINS TO THE FLATS, IN ALL TYPES OF CONDITIONS, THIS LIGHTWEIGHT COMPOSITE ROAD RACER TAKES YOU TO THE NEXT LEVEL. Class-leading efficiency - With an outstanding stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered for superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance. Advanced aerodynamics - This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. Total control - Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm. ADVANCED COMPOSITE TECHNOLOGY - Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction. OVERDRIVE 2 - The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2” lower, 1 1/4” upper) and tapered steerer tube work in harmony to provide supreme steering stiffness. COMPACT ROAD DESIGN - Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit. POWERCORE - A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside. VARIANT SEATPOST - This proprietary seatpost design offers an optimized balance of light weight, superior ride quality and simple adjustment to enhance the total race performance of the TCR road range.

Superlight, ultra-efficient, and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner, and descend with astonishing speed and sublime road handling. KEY PERFORMANCE FACTORS - SYSTEM OPTIMIZATION The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup. - WINNING EFFICIENCY Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count. - INTEGRATED AERODYNAMICS All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation. - MADE FASTER This versatile road racer combines race-winning stiffness-to-weight with aerodynamic tube shaping and system integration. From the road-smoothing Variant seatpost to the composite WheelSystem, every piece is made to perform better as a system. The new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate new internal cable routing for easy setup and adjustment, while integrated disc brakes and generous clearance for tires up to 33mm make it adaptable to all road conditions.

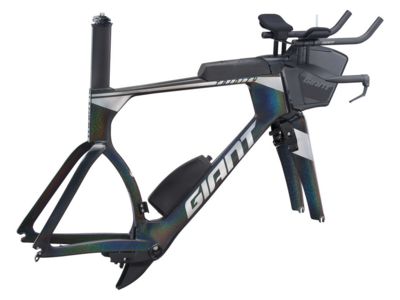

Full integration, flat-out fast. Engineered for pro-level triathletes, this aero machine is in a class of its own. Engineered using Computational Fluid Dynamics and dynamic wind-tunnel testing, the Trinity Advanced Pro delivers supreme aerodynamic performance in a race-ready package. Handcrafted from premium Advanced-grade composite, and meticulously formed with Giant’s AeroSystem Shaping Technology, it slices through the wind better than any bike in its class. Made for real-world triathlon performance, it offers a comfortable fit for long distance training and racing. And its unique AeroVault system includes an integrated front hydration unit, top tube storage box and downtube water bottle that, together, actually improve the bike’s aero performance on the road.

Full integration, flat-out fast. Built to meet the demands of professional triathletes and world champion time trialists, this speeding bullet is in a class of its own. Experience supreme aerodynamic performance in a race-ready package. Engineered using Computational Fluid Dynamics and dynamic wind-tunnel testing, the Trinity Advanced Pro delivers a proven aerodynamic advantage. Handcrafted from premium Advanced-grade composite and meticulously formed with Giant’s AeroSystem Shaping Technology, it slices through the wind better than any bike in its class. Made for racing against the clock—from Ironman triathlon distances to time trial road racing stages—it offers a comfortable fit for long distance training and racing. And its unique AeroVault system includes an integrated front hydration unit, top tube storage box and downtube water bottle that, together, improve the bike’s aero performance on the road. Aero efficiency Extensive CFD analysis, dynamic wind tunnel testing, and triathlon-specific design result in superior aero performance in a race-ready configuration. Integrated design Everything from the AeroVault System for accessible on-bike hydration and storage to the Giant brakes and cockpit are engineered to perform as a system. Perfect fit Refined frame geometry and a wider range of adjustability allow for a triathlon-specific fit or a TT setup that’s designed to meet the unique demands of racing against the clock.

Go long. Go fast. Superlight and silky smooth, the flagship frameset of the new Defy range represents the pinnacle of endurance road performance. The frame and fork are both crafted from Giant's pro-level Advanced SL-grade composite, and the new SLR D-Fuse seatpost adds a small amount of flexing action (up to 7mm) for road-smoothing compliance. Ultralight Carbon Endurance Road Bike Frame With greater lateral stiffness and a superlight weight of just 785g (size medium, frame only), this is the lightest, most efficient Defy frame ever. It's paired with a new Advanced SL-grade fork that weighs 350g, 15 percent lighter than the previous generation Defy fork. This frameset also includes the new D-Fuse SLR seatpost, which adds 40 percent more road-smoothing compliance compared to the previous generation, and two bottle cages.

Unleash your sprint with 200 meters to go. Close a gap, chase back, and launch a solo attack. This new aero road machine is made for the moments that count. More aero, more adjustable, more ways to win. Key Performance Factors: - Integrated aerodynamics AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes produce outstanding overall aero performance. - Easier adjustability All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position. - Race-winning efficiency Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage. Techs and Features: - Advanced SL Composite Technology Professional-grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest, and highest-quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline. - Aerosystem Shaping Technology Through CFD (Computational Fluid Dynamics) and wind-tunnel data, engineers optimize each tube shape to deliver superior aerodynamic performance. - OverDrive Aero Found inside the head tube of the Propel and Defy ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier-to-service system of internally routed brake and derailleur cables.

Unleash your sprint with 200 meters to go. Close a gap, chase back, launch a solo attack. This pro-level road machine is made for the moments that count. More aero, more adjustable, more ways to win. Key Performance Factors Integrated aerodynamics AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce the best overall aero performance. Easier adjustability Cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position. Race-winning efficiency Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 150 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road. KEY PERFORMANCE FACTORS - SYSTEM OPTIMIZATION The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup - WINNING EFFICIENCY Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count. - INTEGRATED AERODYNAMICS From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation. MADE FASTER This pro-level road bike is made for competitive road riders who obsess over performance—from grand tour pros like Simon Yates to everyday riders trying to reach a new level. The flagship TCR model combines its legendary ride quality with new system integration and construction methods to make it more efficient than ever. The down tube is significantly redesigned for improved aerodynamics, and a new integrated cockpit, including the OverDrive Aero steerer tube and Contact SLR AeroLight stem, offers internal cable routing to further minimize drag. From the integrated seatpost to the CADEX WheelSystem with 40mm deep carbon rims, every component is chosen and tested for system optimization.

DESIGN THE EXCEPTIONAL. We've always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between our head designers and we believe the DOGMA F achieves the perfect blend of the two. IMAGE FOR COLOR REFERENCE ONLY
