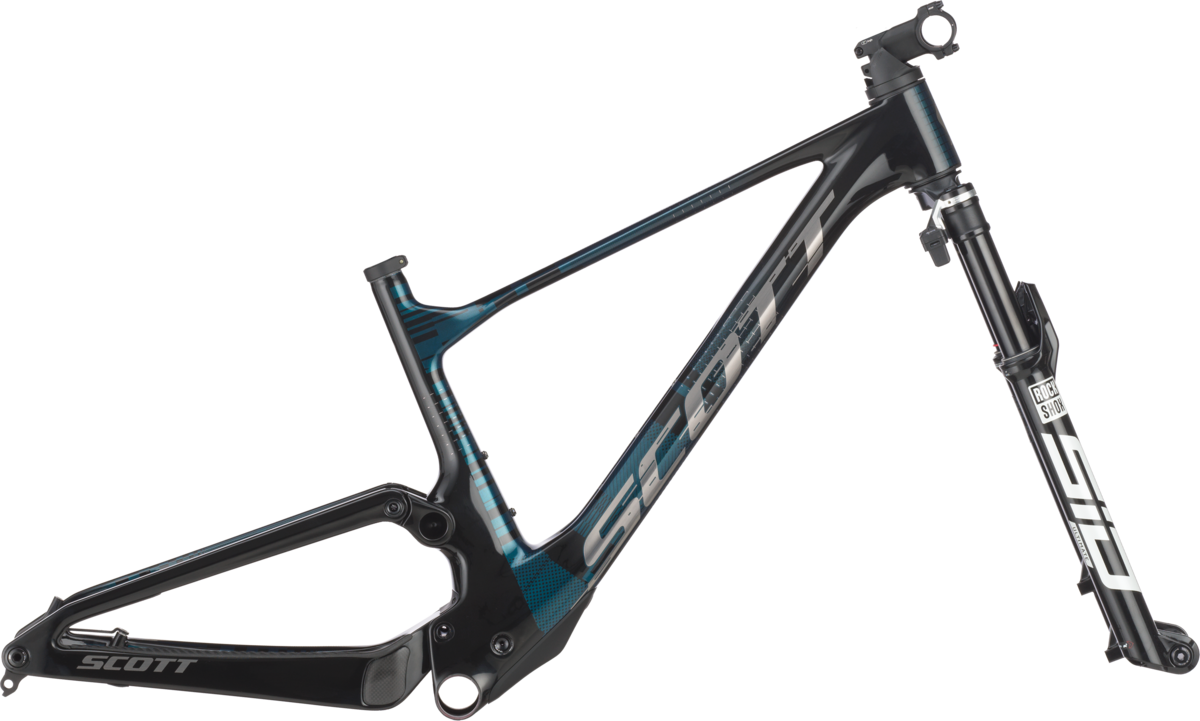

Scott Spark RC SL HMX SL Frame + Fork
$7,999.99
Details
The Spark RC SL is the perfect blend of top-notch carbon engineering, never before seen levels of integration and just the right amount of secret sauce. We wanted to make this platform faster than ever before both up and down the hill. Increasing travel, perfecting geometry, and applying input from the world's best athletes, we've created the cross country race bike of all cross country race bikes. If you think fast is fun, then you're going to love this ride.
| A | head tube angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
|---|---|---|---|---|---|
| B | head tube length | 90.0 mm | 90.0 mm | 105.0 mm | 115.0 mm |
| C | top tube horizontal | 562.0 mm | 590.0 mm | 614.0 mm | 642.0 mm |
| D | standover height | 758.0 mm | 765.0 mm | 776.0 mm | 799.0 mm |
| E | BB offset | -45.0 mm | -45.0 mm | -45.0 mm | -45.0 mm |
| F | BB height | 330.0 mm | 330.0 mm | 330.0 mm | 330.0 mm |
| G | wheel base | 1,129.0 mm | 1,159.0 mm | 1,190.0 mm | 1,231.0 mm |
| H | BB center to toptube center | ||||
| I | BB center to top of seattube | 415.0 mm | 440.0 mm | 490.0 mm | 540.0 mm |
| J | seat angle | 75.9 ° | 76.1 ° | 76.6 ° | 76.9 ° |
| K | chainstay | 437.5 mm | 437.5 mm | 437.5 mm | 437.5 mm |
| L | reach | 411.0 mm | 441.0 mm | 471.0 mm | 501.0 mm |
| M | stack | 602.5 mm | 602.5 mm | 616.0 mm | 625.0 mm |
| N | stem length | 50.0 mm | 60.0 mm | 70.0 mm | 80.0 mm |
| 0 | trail | 115.0 mm | 115.0 mm | 115.0 mm | 115.0 mm |
| P | Fork length | 530.0 mm | 530.0 mm | 530.0 mm | 530.0 mm |
| Q | Maximum Seatpost Insertion | 150.0 mm | 175.0 mm | 225.0 mm | 275.0 mm |
| R | Crank Length | 170.0 mm | 175.0 mm | 175.0 mm | 175.0 mm |
| Rider Height (CM) | Rider Height (IN) | Frame Size |
|---|---|---|
| < 165 cm | < 65 in | XS / S |
| 165 - 175 cm | 65 - 69 in | S / M |
| 175 - 185 cm | 69 - 73 in | M / L |
| 185 - 195 cm | 73 - 77 in | L / XL |
| > 195 cm | > 77 in | XL |
Specs
| Frame | Spark RC Carbon HMX SL Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline |
|---|---|
| Fork | RockShox SID Ultimate Flight Attendant Electronically controlled Suspension FA Race Day damper 3 Modes 15x110mm Maxle Stealth / 44mm offset /Tapered steerer Lockout / Reb. Adj. / 120mm travel |
| Rear Shock | RockShox SIDLuxe Ultimate Flight Attendant Custom Electronically controlled Suspension 3 Modes Lockout-Pedal-Descend Solo Air / Reb. Adj./ Lockout / Travel 120mm / T165X45mm |
| Accessories & Extras | Syncros - Acros Pro Headset System Syncros rear axle |
* Subject to change without notice.
