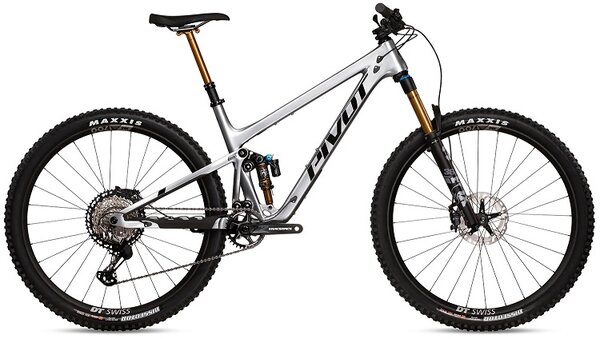

Pivot Cycles Trail 429 Pro XT
Details
The Trail 429 might well be the perfect category defying trail bike. Progressive geometry and super capable suspension give hard charging riders the tools they need to thrive in jumpy and steep terrain. 120mm of travel has never felt this plush or this composed. This very same super-refined dw-link suspension also delivers whip-crack pedal response and acceleration, aided and abetted by the strongest, lightest carbon fiber chassis we've ever developed. The sharp-end of the stick XC capability of this bike is eye-opening, on par with dedicated flyweight race bikes. This is a bike that you can shred with confidence everywhere from 24-hour race courses to untamed high alpine singletrack.
- Refined geometry exemplifies the pinnacle of modern race-to-trail performance
- New, more progressive dw-link prioritizes pedaling efficiency yet still rewards riders with plush, controlled travel
- 120mm rear suspension travel featuring a vertically trunnion mounted high-volume air shock delivers unprecedented comfort and tunability
- Flip chip adjustability allows riders to tailor geometry for either spirited all-round handling or a more progressive and rowdy demeanor
- Hassle-free, full-length, internal cable routing with Pivot's easy to service and ultra-quiet Pivot Cable Port System
- Fits riders between 4'10" and 6'7" with X-Small to X-Large size offerings
- Pivot's full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 4'11" to 6'7" has a bike that feels perfect and performs at the optimum level for their size
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
Geometry: Low BB | |||||
X-Small | Small | Medium | Large | X-Large | |
---|---|---|---|---|---|
A- Seat Tube Length | 34.3 cm | 36.8 cm | 39.4 cm | 43.2 cm | 47.0 cm |
B- Top Tube Length | 57.2 cm | 59.5 cm | 62.8 cm | 64.4 cm | 66.7 cm |
C- Head Tube Length | 8.5 cm | 9.5 cm | 10.7 cm | 11.2 cm | 12.5 cm |
D- Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
E- Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
F- Chainstay Length | 43.0 cm | 43.0 cm | 43.0 cm | 43.0 cm | 43.0 cm |
G- Bottom Bracket Height | 34.7 cm | 34.7 cm | 34.7 cm | 34.7 cm | 34.7 cm |
H- Bottom Bracket Drop | 2.7 cm | 2.7 cm | 2.7 cm | 2.7 cm | 2.7 cm |
I- Standover | 63.6 cm | 66.8 cm | 67.0 cm | 68.2 cm | 69.6 cm |
J- Wheelbase | 112.8 cm | 115.2 cm | 118.7 cm | 120.4 cm | 122.9 cm |
Stack | 58.4 cm | 59.3 cm | 60.4 cm | 60.9 cm | 62.1 cm |
Reach | 41.0 cm | 43.0 cm | 46.0 cm | 47.5 cm | 49.5 cm |
FRAME | Trail 429 | |
WHEEL MATERIAL | Alloy | |
REAR SHOCK | Fox Factory Float X | |
FORK | Fox Factory 34 29", GRIPX2 - 130mm | |
HEADSET | Pivot Precision Sealed Cartridge | |
REAR DER | Shimano XTR M9100 SGS 12-Speed | |
CASSETTE | Shimano XT M8100 10-51t | |
SHIFTER | Shimano XT M8100 ISPEC EV 12-Speed | |
BRAKES | Shimano XT M8120 4-piston | |
CRANKSET | Race Face Æffect R 32t - 170mm(XS-SM), 175mm(MD-XL) | |
HANDLEBAR | Phoenix Team Low Rise Carbon - 780mm | |
GRIPS | Phoenix Factory Lock-On | |
STEM | Phoenix Team Enduro/Trail - 35mm(XS), 45mm(SM), 55mm(MD-XL) | |
SEATPOST | Fox Transfer Factory Series 125mm (XS), 150mm (SM), 155mm -180mm (MD), 210mm (LG-XL) | |
SADDLE | Phoenix WTB Volt Pro (Medium Width) | |
WHEELS | DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R |
|
TIRES | Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA |
|
ROTOR | Shimano XT CenterLock - 180mm Shimano XT CenterLock - 180mm |
|
CHAIN | Shimano CN-M8100 12-Speed |
