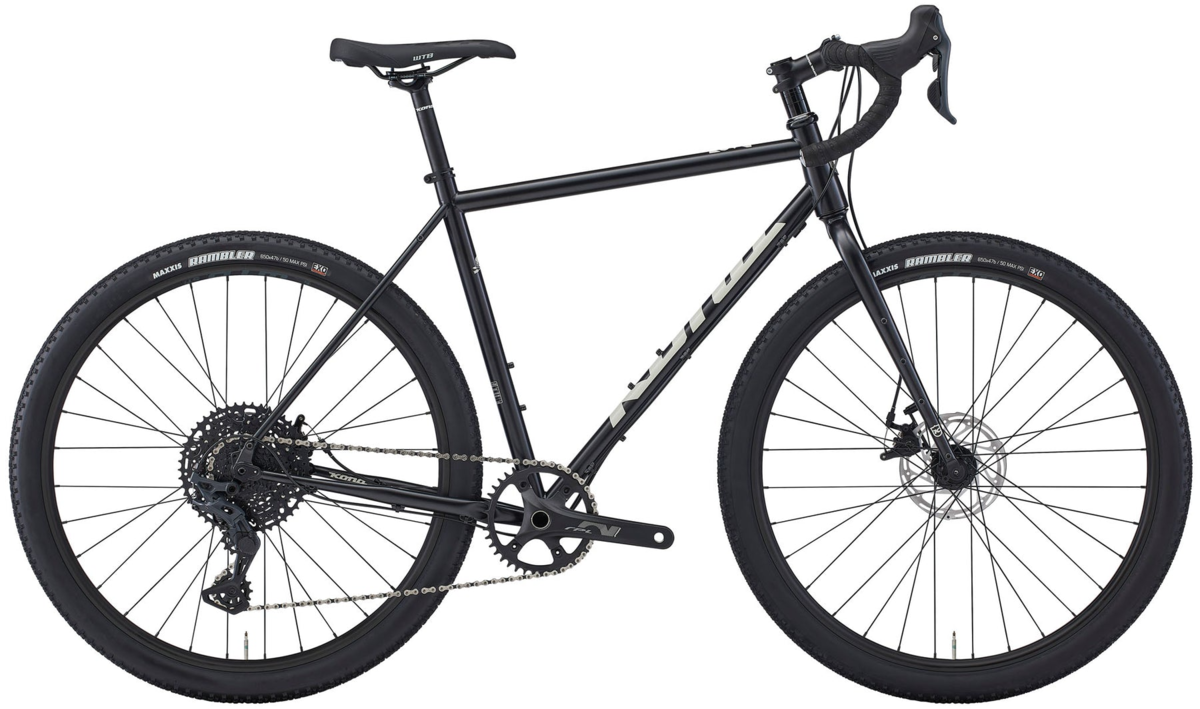

Kona Rove ST w/MicroShift
$1,299.00
Details
The Rove has become the go-to bike for people all over the world that are itching to just... go! It’s spec’d just right, is easy on the eyes, the Rove makes quick work of the commute, gravel trail, or the after-work fitness lap on your local hill. The Rove is the elusive 650x47c steel bike that you can afford. It’s at home in an alley cat race, on the commute, as a messenger rig, or as your only bike. It was cool before cool was cool. It is a bike that wants to ride anywhere YOU want to ride.

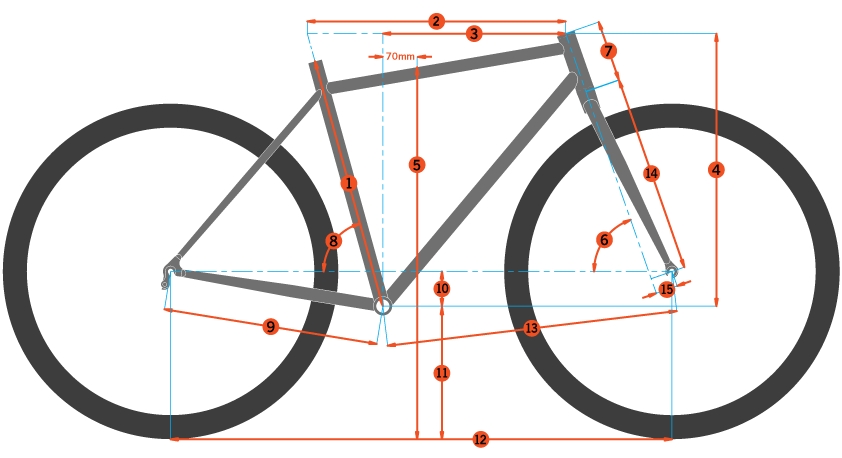

| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
|---|---|---|---|---|---|---|---|
| 1 | ST Length | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT Length | 515 | 531 | 546 | 562 | 578 | 598 |
| 3 | Reach | 372 | 378 | 383 | 388 | 392 | 400 |
| 4 | Stack | 532 | 551 | 570 | 588 | 607 | 626 |
| 5 | Standover | 735 | 754 | 775 | 794 | 815 | 834 |
| 6 | HT Angle | 70.5 | 70.5 | 71 | 71 | 71.5 | 71.5 |
| 7 | HT Length | 90 | 110 | 130 | 150 | 170 | 190 |
| 8 | ST Angle | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS Length | 435 | 435 | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 74 | 74 | 72 | 72 | 70 | 70 |
| 11 | BB Height | 268 | 268 | 270 | 270 | 272 | 272 |
| 12 | Wheelbase | 1016 | 1029 | 1036 | 1048 | 1054 | 1068 |
| 13 | Front Center | 592 | 604 | 612 | 623 | 628 | 643 |
| 14 | Fork Length | 400 | 400 | 400 | 400 | 400 | 400 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
Specs
| Frame | Kona Butted Cromoly |
|---|---|
| Fork | Kona Project Two Cromoly Disc |
| Rims | WTB ST i23 TCS 2.0 |
| Hubs | Front Hub: Formula 100x12mm, Rear Hub: Formula 142x12mm |
| Spokes | Stainless Black 14g |
| Tires | Maxxis Rambler EXO 650x47c |
| Bottom Bracket | Prowheel BB68+ |
| Crankset | Prowheel |
| Chainrings | 40t |
| Shifters | Microshift Sword |
| Rear Derailleur | Microshift Sword |
| Cassette/Freewheel | Microshift Advent X 11-48t 10spd |
| Chain | KMC X10 |
| Brakes | Tektro MDC550 Mechanical |
| Rotors | Tektro TR160mm |
| Brake Levers | Microshift Sword |
| Handlebars | Kona Road |
| Tape/Grips | Kona Cork Tape |
| Stem | Kona Road |
| Headset | FSA No.1/No.10 |
| Seatpost | Kona Thumb w/Offset 27.2mm |
| Saddle | WTB Volt |
* Subject to change without notice.
