Kona Dew
This item is currently not available.
Details
The Dew is our classic all-around commuter/townie option for someone looking for an affordable, comfortable ride. The Dew is an efficient bike that features a drivetrain with a broad gear range and integrated brake and shifter levers. It’s available in two colors so you can pick the bike that best suits your style. Equal parts functional and fun, the Dew is at home whether you’re hopping curbs on urban rides, cruising the bike paths, or rallying to the local pub.

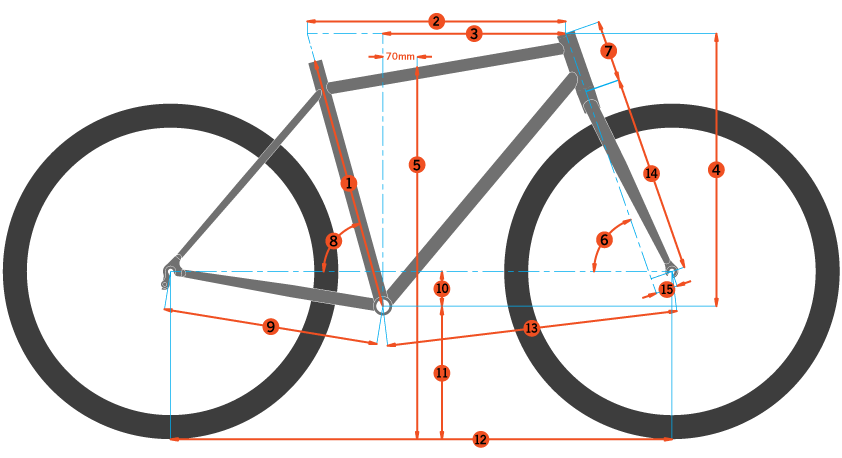

| Size | S | M | L | XL | |
|---|---|---|---|---|---|
| 1 | ST Length | 420 | 470 | 520 | 580 |
| 2 | TT Length | 550 | 597 | 636 | 686 |
| 3 | Reach | 398 | 423 | 439 | 465 |
| 4 | Stack | 569 | 607 | 644 | 682 |
| 5 | Standover | 687 | 722 | 757 | 798 |
| 6 | HT Angle | 70 | 70 | 70 | 70 |
| 7 | HT Length | 135 | 175 | 215 | 255 |
| 8 | ST Angle | 75 | 74 | 73 | 72 |
| 9 | CS Length | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 70 | 70 | 70 | 70 |
| 11 | BB Height | 272 | 272 | 272 | 272 |
| 12 | Wheelbase | 1077 | 1116 | 1146 | 1185 |
| 13 | Front Center | 636 | 675 | 705 | 744 |
| 14 | Fork Length | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
Specs
| Frame | Kona 6061 Aluminum Butted |
|---|---|
| Fork | Kona Project Two Disc |
| Rims | Double Wall alloy |
| Hubs | Formula 100x9mm, Formula 135x10mm |
| Spokes | Stainless 14g |
| Tires | WTB Horizon Comp 650x47c , WTB Horizon Comp 650x47c |
| Bottom Bracket | Feimin 68mm |
| Crankset | Shimano Essa |
| Chainrings | 40t |
| Shifters | Shimano Altus |
| Front Derailleur | Shimano Altus |
| Rear Derailleur | Shimano Altus |
| Cassette/Freewheel | Shimano HG400 11-45t 8spd |
| Chain | KMC Z8.3 |
| Brakes | Tektro HDM275 Hydraulic |
| Rotors | Tektro TR160 160mm |
| Brake Levers | Tektro HDM275 Hydraulic |
| Handlebars | Kona Aluminum Riser |
| Tape/Grips | Kona Key Grip |
| Stem | Kona Control |
| Headset | Feimin FP-H863 |
| Seatpost | Kona Commuter 27.2mm |
| Saddle | Kona Commuter |
| Pedals | Feimin Platform |
* Subject to change without notice.
