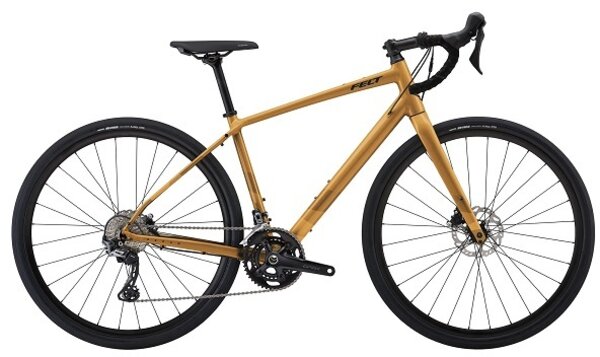

Felt Bicycles Felt Broam 30

Felt Bicycles Felt Broam 30
$2,299.00
Color: Caramel
Size: Select size
Please select options Unavailable

Details

BROAM | 30
Our best adventure road bike ever. Rugged and versatile aluminum frame paired with a carbon fork. Ready for any adventure you seek out.

Whether it’s pushing the boundaries of carbon fiber construction or revolutionizing aerodynamic development, we’re proud of the work we’ve put in over the decades, but we’re never truly satisfied with what’s come before. Sure, we’re always keen to better our competitors in the realms of innovation, but, more importantly, we’re committed to self-improvement. After all, isn’t bettering yourself one of the greatest things about riding a bike? So beyond the broad strokes of technological developments, when it comes to creating a truly stellar bicycle, it’s all about the details. And we’ve made a habit out of sweating the details for over thirty years, because when you obsess over every element of improving the riding experience, you'll end up with a bike that is much more than the sum of its parts. Here’s a list of some slightly less unheralded yet incredibly thoughtful features you’ll find on several models of Felt bikes.

SIZE GUIDE

RIDER HEIGHT
CM / FT

RIDER INSEAM
CM / INCHES Measured from crotch to floor.
47CM 51CM 54CM 56CM 58CM 61CM

152.4 -167.6 cm
5’0”-5’5”

167.6 -172.7 cm
5’5”-5’8”

172.7 -177.8 cm
5’8”-5’10”

177.8 -182.8 cm
5’10”-6’0”

182.8 -187.9 cm
6’0”-6’2”

187.9-195.5 cm
6’2”-6’5”

71.2 -74.9 cm
28"-29.5"

75.1 - 76.2 cm
29.6’’-30.0”

77.9 -82.0 cm
30.7”-32.3”

81.0 -85.0 cm
31.9”-33.5”

84.0 -87.1 cm
33.1”-34.3”

87.3-91.1 cm
34.4”-35.9”

GEOMETRY

BROAM (A-1.0)

XS | 47cm S | 51cm M | 54cm L | 56cm XL | 58cm XXL | 61cm
(A) HEAD TUBE ANGLE 70.5 70.5 71 71 71 71
(B) SEAT TUBE ANGLE 74 74 74 73 73 73
(C) TOP TUBE LENGTH (EFFECTIVE) 530 535 555 570 580 595
(D) HEAD TUBE LENGTH 125 145 165 180 200 220
(E) SEAT TUBE LENGTH (CENTER TO TOP) 410 435 460 485 515 545
(F) STAND OVER HEIGHT 688 713 720 762 790 818
(G) BOTTOM BRACKET DROP 72 72 72 72 72 72
(H) REAR CENTER 450 450 450 450 450 450
(I) FRONT CENTER 599 605 616 626 636 652
(J) WHEELBASE 1039 1045 1056 1066 1076 1092
(K) FORK LENGTH 400 400 400 400 400 400
(L) FORK OFFSET 50 50 50 50 50 50
(M) STACK 551 570 591 605 624 643
(N) REACH 372 371 380 385 389 399

DETAILED TECHNICAL SPECIFICATIONS

VERSION BROAM | 1 SERIES BROAM (A-1.0)
MODEL BROAM | 30 PRICE $ 2,299
MARKET Global FINISH Caramel
MODEL CODE FB-20B-BRMA30-UB-FA MODEL # M3 BBIAA27
SIZES 6 | 47, 51, 54, 56, 58, 61cm FRAME Felt Adventure | SuperLite aluminum
FRAME TECHNOLOGIES Custom Butted tubing / Smooth welding BOTTOM BRACKET TYPE Threaded | BSA 68mm
BRAKE TYPE, REAR Disc, Flat Mount | Ø140mm minimum DERAILLEUR HANGER TYPE, FRONT Band | Ø31.8mm
DERAILLEUR HANGER TYPE, REAR Standard Mount | TA 12x142 road, replaceable, aluminum HEAD-TUBE TYPE Felt ControlTaper | 1.125-1.5"
PROTECTOR TYPE Clear vinyl for chain slap protection ROUTING TYPE Internal | mechanical specific
SEAT POST / CLAMP TYPE Standard | 27.2mm post, 31.8mm clamp / 6061 aluminum, steel bolt & nut-bar WHEEL TYPE Specification: 700c / Compatible: 650b
TIRE MAX (CLEARANCE) 700c: 45mm (6mm) / 650b: 2.1" (6mm) FORK Felt Gravel - Adventure | UHC Performance carbon fiber with aluminum steerer tube
HEADSET IS (NO.42) AXLE, FRONT TA 12x100
AXLE, REAR TA 12x142 BRAKE TYPE, FRONT Disc, Flat Mount | Ø140mm minimum
FORK OFFSET 50mm HEADSET SPECIFICATION Top Cap: Devox Variable Angle stem / Top Cover: Felt VariableHeight (20mm PC, 4.5mm aluminum) / Bearings: FSA integrated retainer / Spacers: FSA nylon (10mm, 2x5mm) / Compression Device: star nut for aluminum steerer tube / Crown Race: FSA alloy
AXLE, FRONT SPECIFICATION Devox AxleTA 130.5 | 125mm + 5.5mm head, M12 x 1.5P x 17mm, Switch lever compatible AXLE, REAR SPECIFICATION Devox AxleTA 172-9 | 163mm + 9mm head, M12 x P1.0 x 19mm for Syntace X-12, Switch lever compatible
SPEED 2x11-speed SHIFTERS Shimano GRX RX600
DERAILLEUR, FRONT Shimano GRX RX810, braze-on with Ø31.8mm clamp adapter DERAILLEUR, REAR Shimano GRX RX810
CRANK Shimano GRX RX600, 46/30T BOTTOM BRACKET Shimano RS500
CASSETTE Shimano 105 HG700, 11-34T CHAIN Shimano 105 HG601
CRANK LENGTH 47cm: 165mm / 51cm: 170mm / 54, 56cm: 172.5mm / 58, 61cm: 175mm BRAKE CALIPERS Shimano GRX RX400, hydraulic disc, flat mount
BRAKE ROTORS Shimano RT70, Center Lock, 160/140mm WHEELS Devox WheelRDS.A1 with Shimano hubs | 23/21
TIRES Maxxis Refuse with Max Shield, tubeless ready, 700x40c TIRE COMPATIBILITY Tubeless Compatible
RIMS Aluminum RIM DEPTH 23mm
RIM WIDTH, INSIDE 21mm HUB, FRONT Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x100
HUB, REAR Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x142, 11-speed SPOKES J-Bend, 2.0, stainless steel, black
NIPPLES Brass, black HANDLEBAR Devox DBar.A2 GXA
STEM Devox StemR.A2 VA GRIPS / TAPE Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs
HANDLEBAR CLAMP DIAMETER 31.8mm HANDLEBAR DROP 130mm, 8° flare
HANDLEBAR REACH 86mm HANDLEBAR WIDTH 47cm: 40cm / 51cm: 42cm / 54cm: 44cm / 56, 58, 61cm: 46cm
STEM CLAMP DIAMETER 31.8mm STEM ANGLE ±8°/±16°
STEM LENGTH 47cm : 80mm / 51cm: 90mm / 54, 56cm: 100mm / 58cm: 110mm / 61cm: 120mm SEATPOST Devox Post.A3
SEATPOST OFFSET 0mm SEATPOST LENGTH 47, 51cm: 300mm / 54, 56, 58, 61cm: 330mm
SADDLE Selle Royal Essenza Gel WEIGHT 23.23 lb, 10.56 kg
WEIGHT DISCLAIMER The most accurate way to determine a product's weight is to have your local dealer weigh it for you. Because we understand that weight is an important metric, we strive to list it when possible. When listed, weight is based on a single sample in a specific size and with all items as shown in the photo. It is not an exact indication of what your bike or frame will weigh, as there are tolerances in many variables involved (size, finish, hardware, components, and accessories). Felt continues to be an industry leader in weight and performance. SPECIFICATION DISCLAIMER Specifications subject to change without notice.
