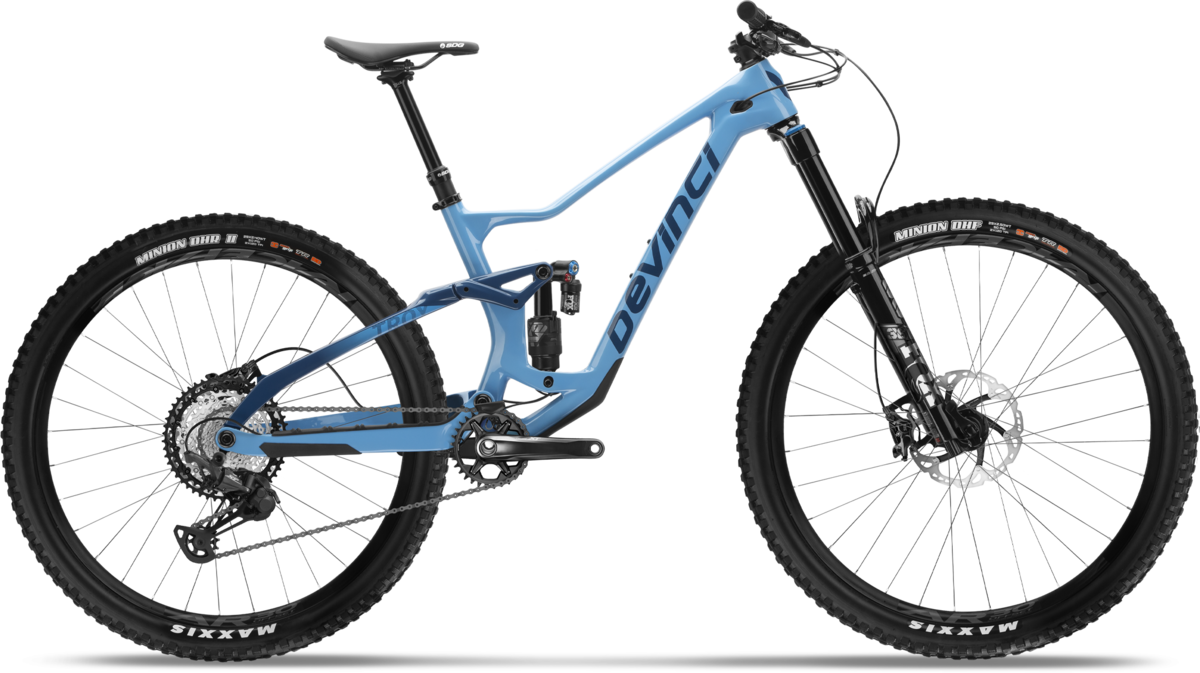

Devinci Troy Carbon XT 12s LTD

Devinci Troy Carbon XT 12s LTD
  • Color: Cavalry Blue
  • Color: Green Gold
  • Color: Napolitaine
$6,999.00
Color:
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free.

Details

One bike, zero excuses. The Troy is a quiver killer. In its fourth-generation, the 140mm travel frame gets a svelter rear-end with improved clearance and ample room for up to 2.6? tires. It also has stouter, double-row linkage bearings and refined geometry with size-specific chainstay lengths and longer reaches on all sizes-results of serious testing around the globe. If you're looking for a trusty rig to take on everything your skills can handle, and maybe some stuff they can't yet, the Troy is your bike.

Sizes:
SIZESmallMediumLargeX-Large
A - Seat Tube (MM) | HI/LO 400 / 400 420 / 420 445 / 445 495 / 495
B - Seat Tube Angle (°) | HI/LO 77.6 / 78.2 77.5 / 78 76.9 / 77.4 76.4 / 76.9
C - Head Tube Angle (°) | HI/LO 65 / 65.5 65 / 65.5 65 / 65.5 65 / 65.5
D - Top Tube (MM) | HI/LO 574 / 573 598 / 597 626 / 625 655 / 654
E - Reach (MM) | HI/LO 440 / 445 460 / 465 480 / 485 500 / 505
F - Chain Stay (MM) | HI/LO 435 / 433 435 / 433 440 / 438 445 / 443
G - Wheelbase (MM) | HI/LO 1190 / 1189 1215 / 1213 1244 / 1243 1273 / 1272
H - BB Height (MM) | HI/LO 341 / 348 341 / 348 341 / 348 341 / 348
I - Standover Height (MM) | HI/LO 735 / 740 736 / 741 755 / 760 788 / 793
J - Stack (MM) | HI/LO 612 / 608 621 / 617 631 / 626 640 / 635
K - Head Tube (MM) | HI/LO 95 / 95 105 / 105 115 / 115 125 / 125
Rider Height (CM) 160-170 169-179 178-188 187-198
Fox Transfer (MM) 150 175 175 175
RS Reverb (MM) 150 175 200 200
Sizes:
SIZESmallMediumLargeX-Large
CM 160-170 169-179 178-188 187-198
INCHES 5'3" - 5'7" 5'7" - 5'10" 5'10" - 6'2" 6'2" - 6'6"

Specs

Frame Carbon DMC-G 140mm
Fork Fox Float 36 Performance Elite Grip2 160 | 44 Offset
Rear Shock Fox Float X2 P.Elite Trunnion | 0.3VSpacer | 185x52.5
Rims RaceFace ARC30 | 30mm inner | TR
Hubs RaceFace Vault | 6bolts |
Spokes Sapim Stainless 14G w/Nylok
Tires Maxxis Minion DHF | 29x2.5wt | 3C MaxxGrip DoubleDown TR
Bottom Bracket Shimano MT800 | BSA | 68/73mm
Chainrings Shimano XT M8130-1 | 32T | SuperBoost 157
Shifters Shimano XT M8100 | 12s | I-spec EV
Rear Derailleur Shimano XT M8100 | 12s
Cassette/Freewheel Shimano XT M8100 | 12s | 10-51T | Microspline
Chain Shimano M7100 | 12s
Brakes Shimano XT M8120/M8100 | 4 Pistons
Handlebars RaceFace Next R35 | B:35mm | R:20mm | W:800mm
Tape/Grips Devinci Performance | w/lock-on
Stem RaceFace Turbine R35 | B:35mm | L:40mm | 0°
Headset FSA Orbit | 1.5 | Zero Stack
Seatpost SDG Tellis | 34.9mm
Saddle SDG BELAIR 3.0
Pedals Sold Separately

* Subject to change without notice.
