Details
SAME LEGENDARY DEVINCI CAPABILITY. ONLY SMALLER.

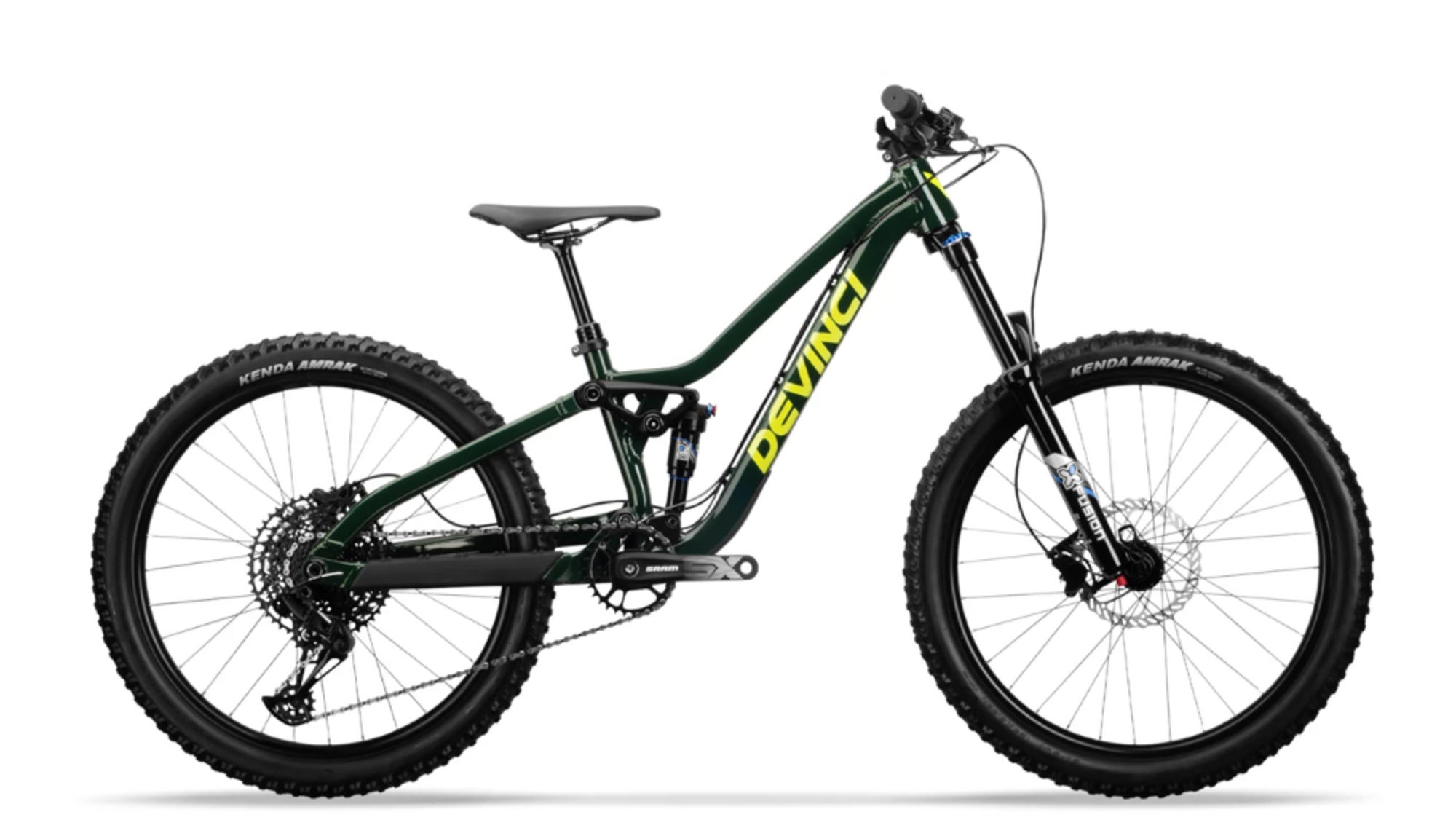

Born-to-ride meets built-to-shred on this little trail ripper. The Ewoc FS packs the legendary capability of our trail bikes into a smaller package that's specifically built for the needs of young riders. Its ultra low standover height, custom tuned suspension kinematics, wide tire clearance and aggressive geometry deliver performance that's usually reserved for adults. The Canadian-made frame is built to last and grow with the rider by switching the 24" stock wheels for larger 26" hoops. Unstoppable starts here.
SRAM EAGLE SX 12 SPEED GROUPSET
The Ewoc FS is equipped with a Sram Eagle SX 12 speed drivetrain which includes a Sram PG-1210 11-50T cassette for easier climbing and an optimal pedaling ratio for your child.
XFUSION AIR SUSPENSIONS
Tuned specifically for kids, the XFusion Velvet RL fork and the XFusion O2 Pro RL rear shock offer adjustability and comfort for lightweight riders. Both being air suspensions, it will be easy to fine-tune settings and thus maximize the bike's overall performance.
LEGENDARY CAPABILITY
The Ewoc FS is specifically built for the needs of young riders looking to push their limits on the trails. We designed the Ewoc FS so kids can feel like they’ve commandeered a speeder of their own on every ride. Everything about the Ewoc FS is designed to give young riders the same performance that adults get from their trail bikes.
TRUE DEVINCI RIDE FEEL
Cutting no corners in adapting the true Devinci ride feel for the youth. The build includes short-reach brake levers for smaller hands, a 12-speed gearing for easy climbing and optimal pedaling ratio, a short dropper post, and short 155mm crank arms for a more comfortable stance. We went all out on the design of our newest kid’s bike. So, the next generation can go all out on the trail!
24-inch | |
---|---|
A - ST (MM) | 310 |
B - SA (DEG) | 76 |
C - HA (DEG) | 64.5 |
D - TT (MM) | 511 |
E - REACH (MM) | 375 |
F - CS (MM) | 419 |
G - WB (MM) | 1097 |
H - BBH (MM) | 310 |
I - SOH (MM) | 633 |
J - STACK (MM) | 544 |
K - HT (MM) | 95 |
RIDER HEIGHT (CM) | 133-149 |
GRANDEUR ROUE (IN) | 24 |
Specs
Pedals | Wellgo J345 |
---|---|
Fork | XFusion Velvet RL | Kids tune | 140mm | w/Lockout & Rebound |
Hubs |
FRONT HUB: Formula | DC-71 | Sealed | 6bolts TA 15x100mm REAR HUB: Formula | DHT-148 | 6 Bolts TA 12x148 BOOST |
Stem | V2 Comp 31.8 | 35mm ext | 0 degree |
Chain | SRAM SX Eagle | 12s |
Frame | Aluminum |
Tires | Kenda Amrak K1247 24x2.4 |
Brakes | Promax DSK-926 | 2 Pistons |
Saddle | Devinci |
Headset | FSA Orbit | 1.5E | Zero Stack |
Crankset | Sram SX Eagle 30T 155mm Boost 148 |
Seatpost | TranzX Dropper | 31.6mm | 1xLever | 100mm | Kids Tune |
Shifters | SRAM SX Eagle | 12s |
Handlebars | V2 Pro | B:31.8mm | R:18mm | W:680mm |
Tape/Grips | Devinci Performance | w/lock-on |
Bottom Bracket | Truvativ Power Spline |
Rear Derailleur | SRAM SX Eagle 12s |
Cassette/Freewheel | SRAM PG1210-12s 11-50T |
Rims | V2 Comp | 27mm inner |
Rotors | Promax Stainless 180mm |
Spokes | Stainless 14G |
* Subject to change without notice.
