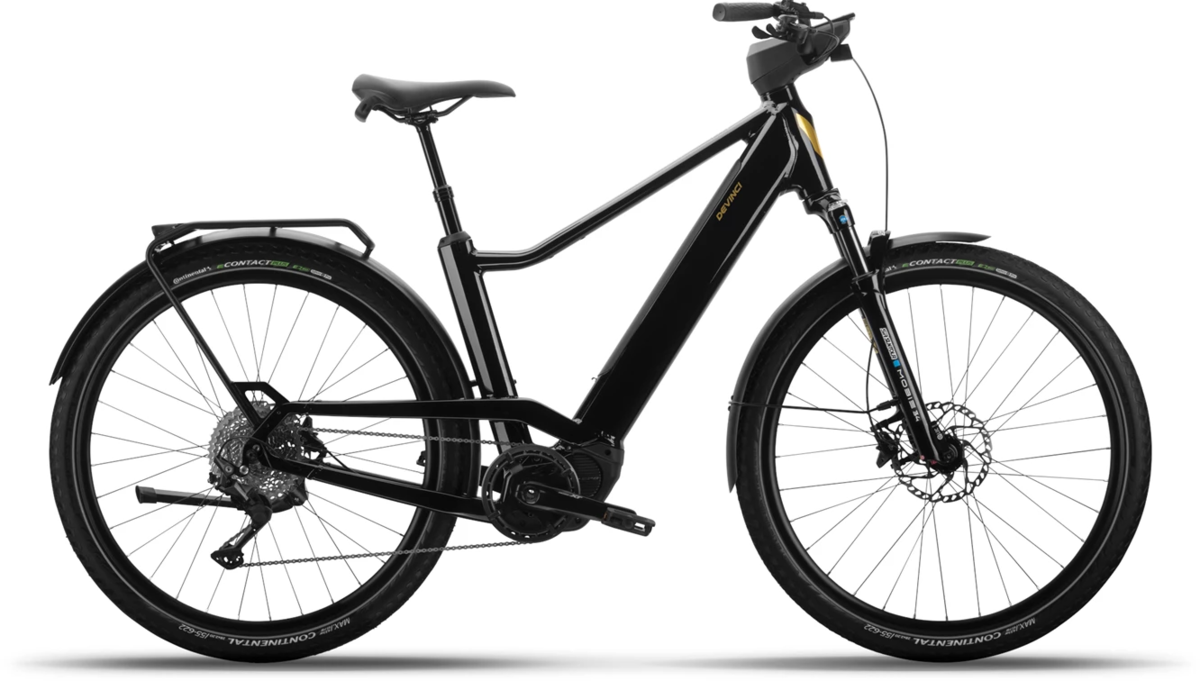

Devinci eGriffin EP8 10s
$4,399.00
Details
The E-Griffin takes the guesswork out of city and leisure biking. It's built around a powerful Shimano Steps motor for reliable power on demand. No detail of the bike was overlooked. From the integrated handlebar display to the powerful hydraulic brakes, suspension fork and step-thru frame, it's tailored to the needs and style of riding style. So you can ride often, with confidence.
| SIZE | Small | Medium | Large |
|---|---|---|---|
| A - Seat Tube (MM) | 400 | 460 | 525 |
| B - Seat Tube Angle (°) | 73 | 73 | 73 |
| C - Head Tube Angle (°) | 68 | 68 | 68 |
| D - Top Tube (MM) | 621 | 637 | 653 |
| E - Reach (MM) | 415 | 425 | 435 |
| F - Chain Stay (MM) | 480 | 480 | 480 |
| G - Wheelbase (MM) | 1181 | 1199 | 1216 |
| H - BB Height (MM) | 295 | 295 | 290 |
| I - Standover Height (MM) | 665 | 718 | 770 |
| J - Stack (MM) | 671 | 689 | 708 |
| K - Head Tube (MM) | 170 | 190 | 210 |
| Rider Height (CM) | 152-168 | 168-180 | 180-193 |
| SIZE | Small | Medium | Large |
|---|---|---|---|
| CM | 152-168 | 168-180 | 180-193 |
| INCHES | 5' - 5'6" | 5'6" - 5'11" | 5'11" - 6'4" |
Specs
| Frame | Aluminum Optimum S03 |
|---|---|
| Fork | Suntour Mobie 34 80mm w/Preload adjuster |
| Rims | V2 Comp | 23mm inner |
| Hubs |
Front: Formula Disc sealed Rear: Formula EHL-135S | sealed | 6bolts | 10x135mm | H.G. |
| Spokes | Stainless 14G |
| Tires | Kenda KwickNine | 29x2.2 | K1052 | |
| Crankset | Shimano STEPS CRET600 | 38T Single chain guard |
| Shifters | Shimano Cues M6000 | 10s |
| Rear Derailleur | Shimano Cues U6000 | 10/11s |
| Cassette/Freewheel | Shimano Cues 10s 11-48T |
| Chain | Shimano LG500 | 9/10/11s |
| Brakes | Shimano Deore M4100/MT410 | 2 pistons |
| Rotors | Shimano RT66 | 180mm |
| Handlebars | V2 Comp |
| Tape/Grips | Velo Ergo Comfort |
| Stem | TranzX I-Alloy | B:31.8mm | 70mm | 7° |
| Headset | FSA Custom |
| Seatpost | TranzX Dropper 31.6mm 1xLever |
| Saddle | Devinci |
| Pedals | Wellgo C211DU |
| Accessories & Extras | Front & Rear Fender: Sunny Wheel |
| Motor | Shimano STEPS EP801 | 250W | 85Nm |
| Battery | BMZ Gen2 725Wh |
| Controller/Display | Shimano STEPS EN610 |
* Subject to change without notice.
