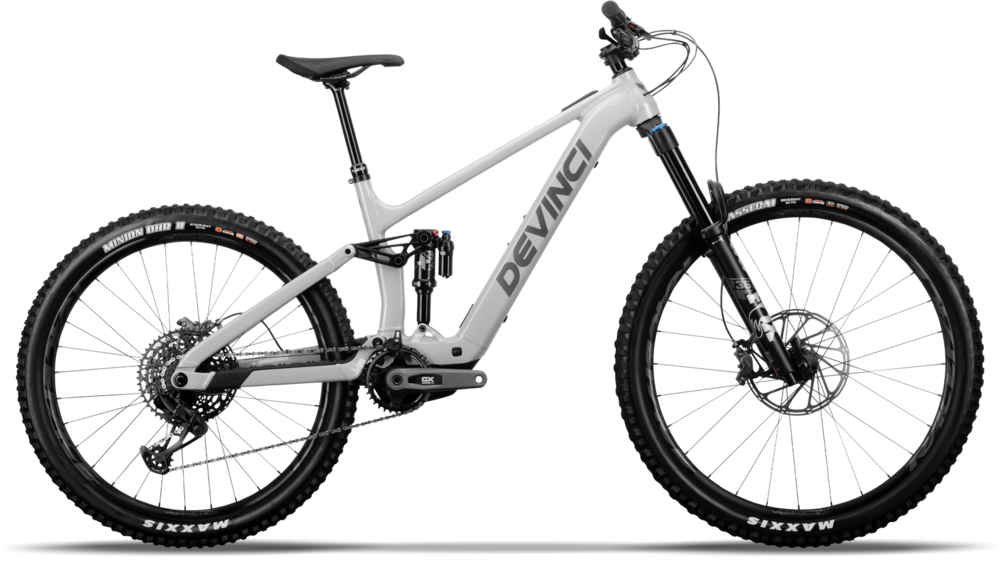

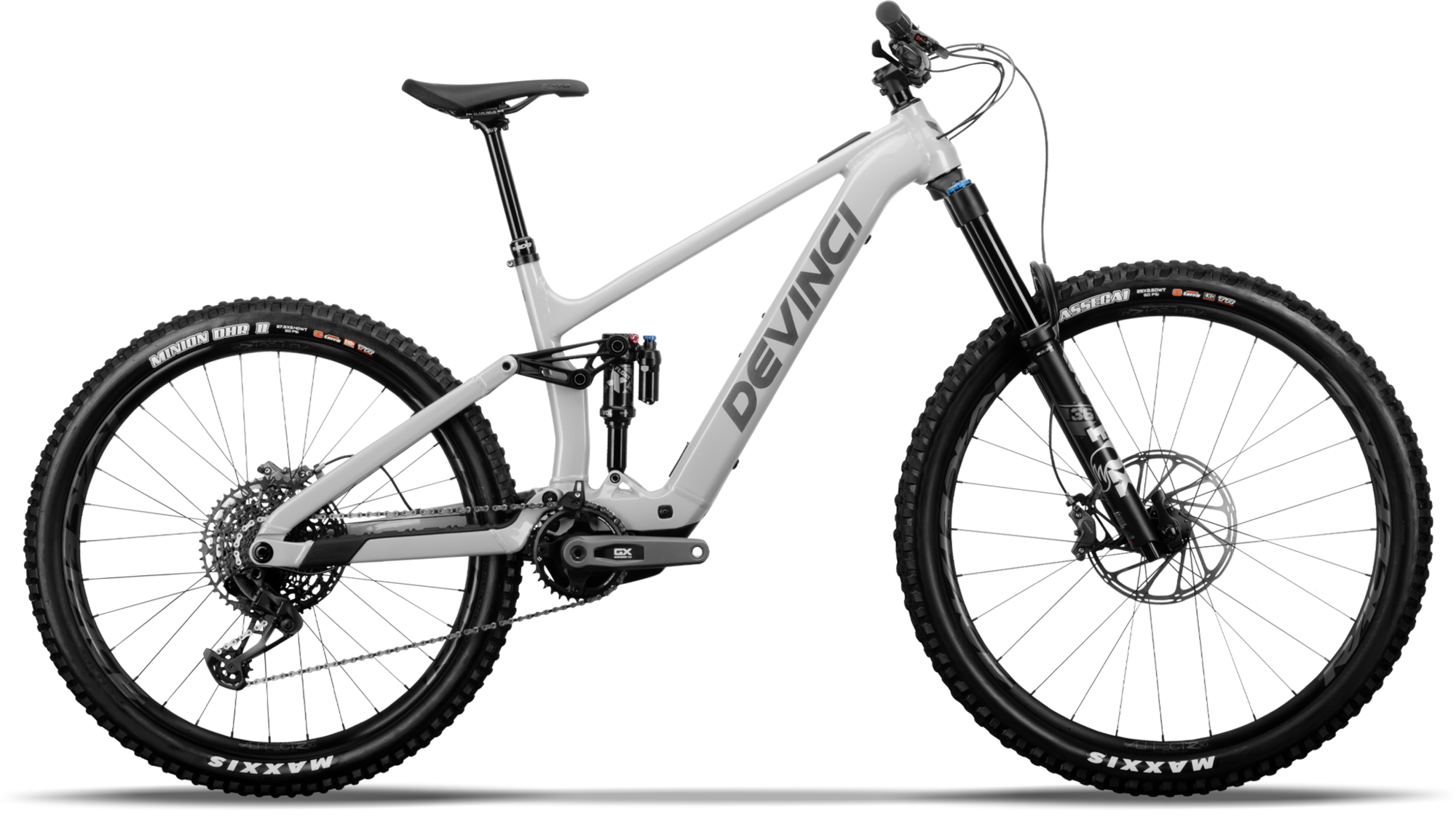

Devinci E-Troy Lite AL MX GX 12s
Details
GETTING YOU MORE ON EVERY RIDE
Climb in a flash and descend in style with this next generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for. You’ll sense the power delivered by a Bosch system that’s compatible with a range extender for longer days. More than anything, you’ll notice how subtle the difference is on the way down. An agile made-in-Canada chassis with mixed wheels and suspension kinematics brings the spirit of a Devinci trail bike to the world of power assist. The E-Troy Lite gives you more on every ride.
| S | M | L | XL | |
|---|---|---|---|---|
| A - ST (MM) | 400 | 420 | 460 | 495 |
| B - SA (DEG) | 77.9 | 77.8 | 77.6 | 77.5 |
| C - HA (DEG) | 63.6 | 63.6 | 63.6 | 63.6 |
| D - TT (MM) | 572 | 594 | 618 | 641 |
| E - REACH (MM) | 441 | 461 | 481 | 501 |
| F - CS (MM) | 438 | 438 | 438 | 438 |
| G - WB (MM) | 1216 | 1240 | 1264 | 1289 |
| H - BBH (MM) | 346 | 346 | 346 | 346 |
| I - SOH (MM) | 740 | 740 | 740 | 740 |
| J - STACK (MM) | 608 | 617 | 626 | 635 |
| K - HT (MM) | 95 | 105 | 115 | 125 |
| RIDER HEIGHT (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Battery | Bosch CompactTube 400 | 36V | 400 Wh |
|---|---|
| Fork | Fox 36 PSE | Grip2 | 29 |160 | 110x15 | 44OS |
| Stem | V2 Pro | B:35mm | L:40mm | 0° |
| Chain | SRAM NX Eagle | 12s |
| Rotors | SRAM Centerline | 200mm |
| Saddle | SDG BELAIR Max eMTB |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | SDG Tellis 31.6mm |
| Handlebars | RaceFace Turbine R35 | B:35mm | R:35mm | W:800mm |
| Rear Shock | Fox Float X Performance Elite |
| Rear Derailleur | SRAM GX Eagle | 12s |
| Cassette/Freewheel | SRAM PG1230 | 12s | 11-50T | HG |
| Frame | Aluminum Optimum G04 150mm |
| Chainrings | Sram X-Sync Eagle 34T EMTB |
* Subject to change without notice.
