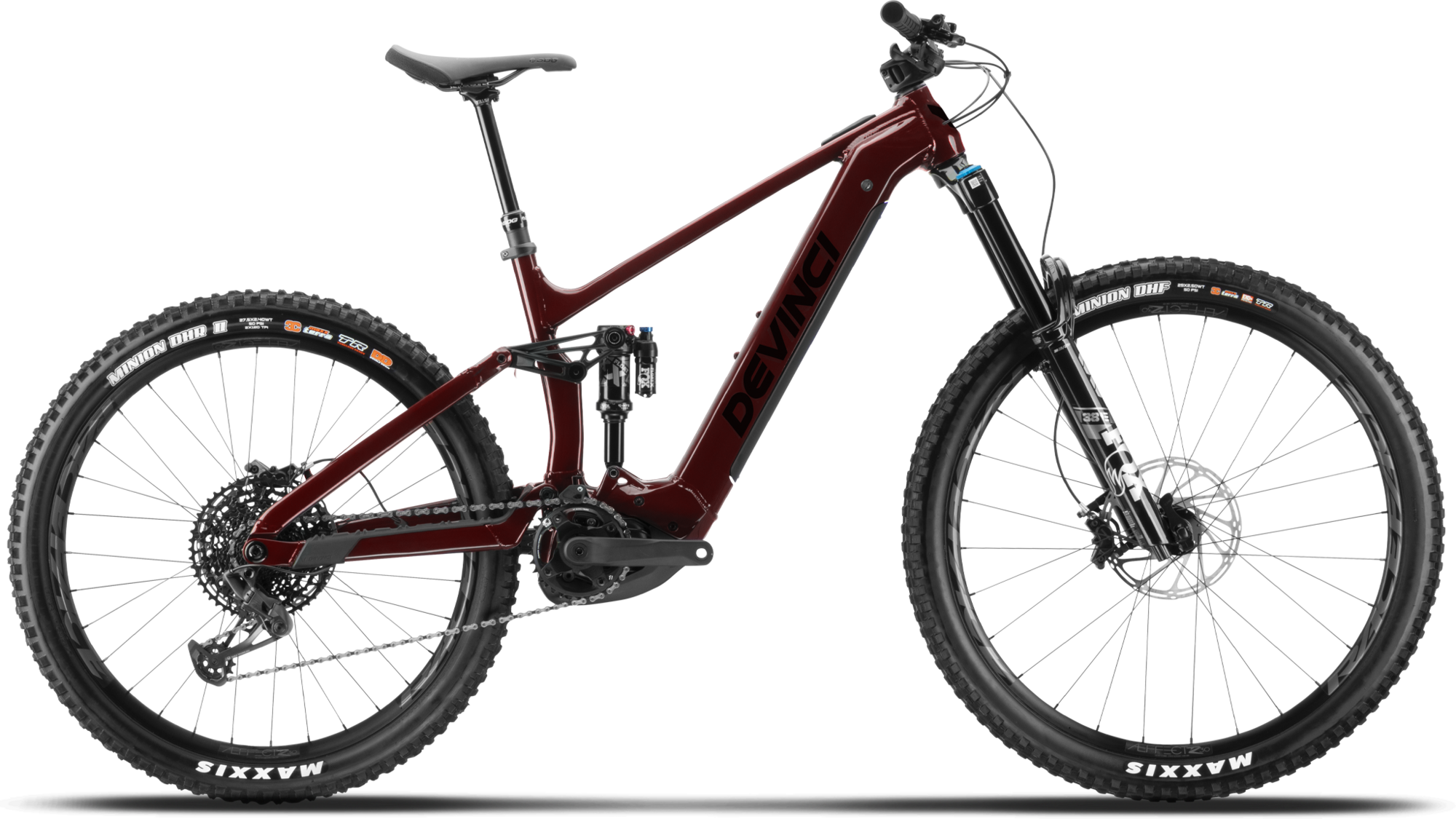

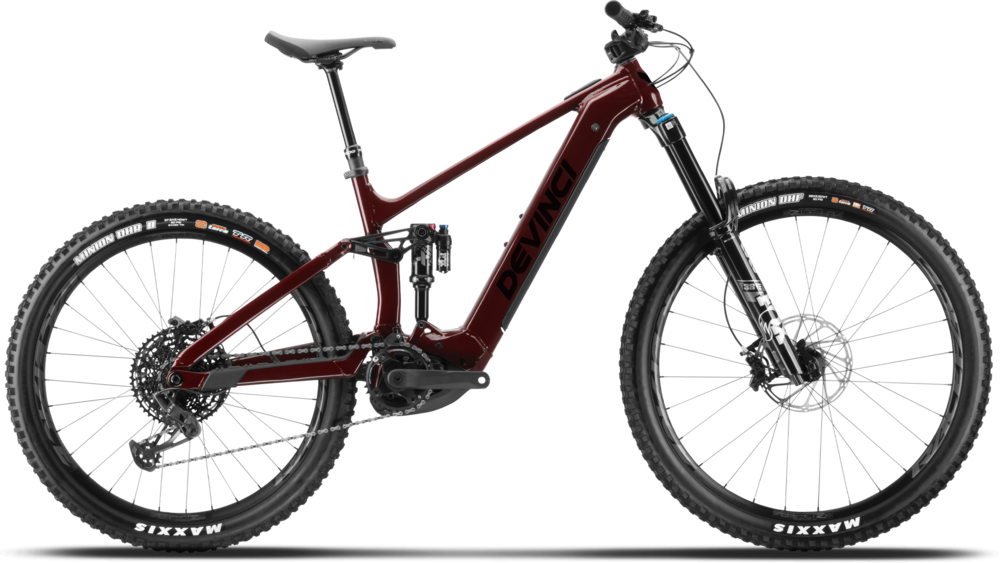

Devinci E-Troy GX Smart System
Details
E-ALL MOUNTAIN
See what happens when maximum output meets legendary all-mountain capability with the new E-Troy. Everything about the E-Troy was designed with power in mind. The suspension kinematics, dedicated mixed wheel configuration and true MTB geometry create a riding experience that feels immediately familiar and startlingly potent. Don’t settle for e-bikes that let a motor drag you around the trails. Take control of your ride and go further than ever with the made-in-Canada E-Troy.
| S | M | L | XL | |
|---|---|---|---|---|
| A - ST (MM) | 400 | 420 | 460 | 495 |
| B - SA (DEG) | 78.5 | 78.5 | 78.5 | 78.4 |
| C - HA (DEG) | 63.5 | 63.5 | 63.5 | 63.5 |
| D - TT (MM) | 570 | 590 | 612 | 635 |
| E - REACH (MM) | 445 | 465 | 485 | 505 |
| F - CS (MM) | 438 | 438 | 438 | 438 |
| G - WB (MM) | 1225 | 1245 | 1270 | 1294 |
| H - BBH (MM) | 348 | 348 | 348 | 348 |
| I - SOH (MM) | 740 | 740 | 740 | 740 |
| J - STACK (MM) | 615 | 615 | 624 | 633 |
| K - HT (MM) | 105 | 105 | 115 | 125 |
| RIDER HEIGHT (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Battery | BOSCH PowerTube | 625Wh |
|---|---|
| Fork | Fox 38 Performance Elite Grip2 160 | E-Optimized | 44 Offset |
| Stem | V2 Pro | B:35mm | L:50mm | 0° |
| Chain | SRAM GX Eagle | 12s |
| Frame | Aluminum Optimum G04 140mm |
| Rotors | SRAM Centerline | 200mm |
| Saddle | SDG BELAIR Max eMTB |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Seatpost | SDG Tellis 31.6mm |
| Handlebars | V2 Pro | B:35mm | R:30mm | W:800mm |
| Rear Shock | Fox Float X Performance Elite Evol LV | 0.4VSpacer| 185x55T |
| Rear Derailleur | SRAM GX Eagle | 12s |
| Cassette/Freewheel | SRAM PG1230 | 12s | 11-50T | HG |
| Chainrings | Sram X-Sync Eagle 34T EMTB |
| Motor | BOSCH Performance Line CX | 85Nm |
| Controller/Display | BOSCH System controller BRC3100 |
* Subject to change without notice.
