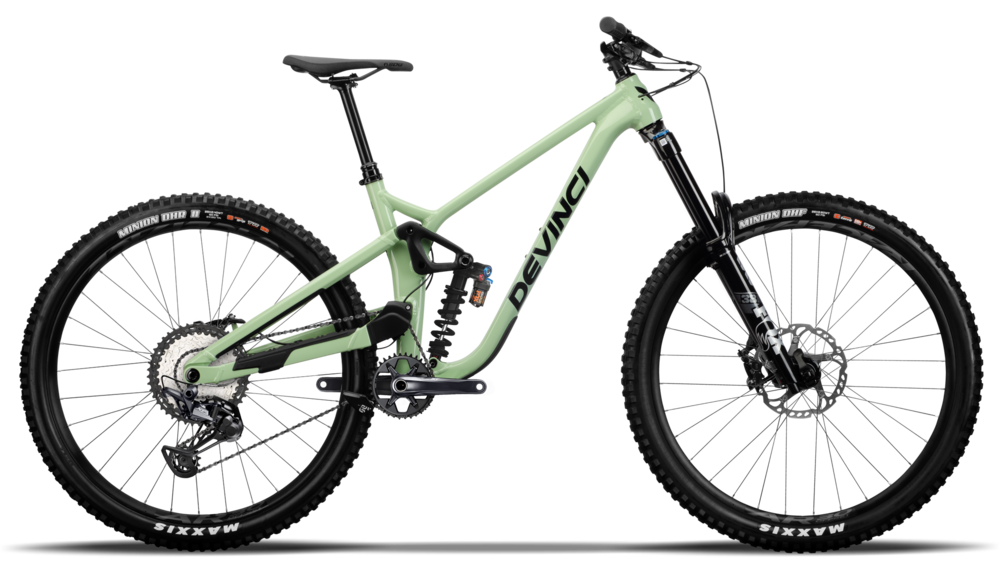

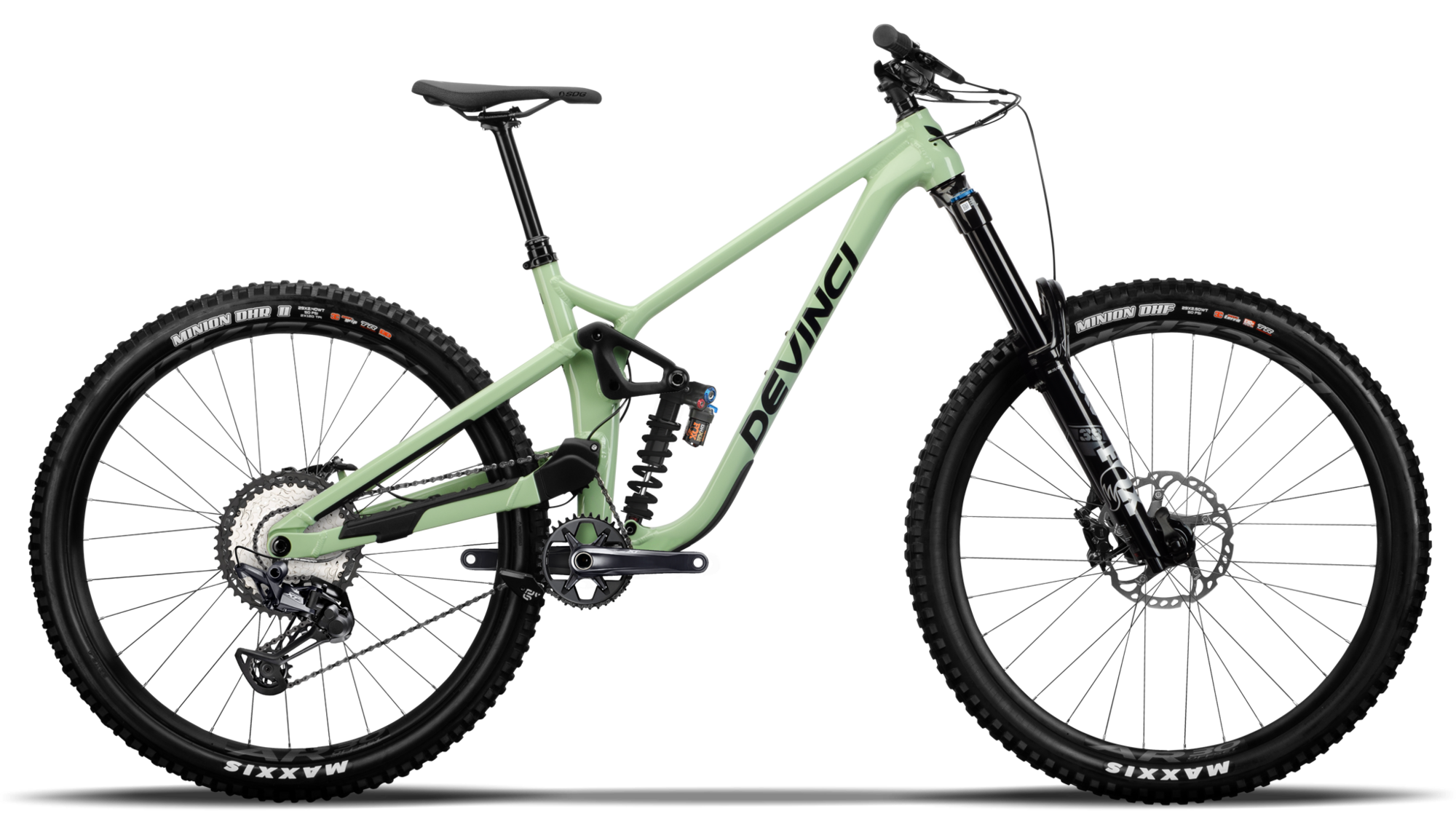

Devinci Chainsaw A29 GX12s
Details
Stevie Smith’s love for riding was contagious. Just being in his presence made you want to go fast, whether you were racing or not. We made the Chainsaw to embrace that spirit and carry on his legacy, with an annual donation to the Stevie Smith Legacy Foundation.
Whether you’re lapping the park, lining up for your first DH race or pedalling to the gnarliest trail in town, the only thing stopping this Chainsaw are its brakes. It can handle any trail you throw at it: the aluminum frame is made in Canada and guaranteed for life. It’s compatible with mixed wheels, single and dual crown forks.
Let ‘er rip!
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Geometry Position | Low / High | Low / High | Low / High | Low / High |
| ST (MM) | 405 | 435 | 450 | 470 |
| SA | 79.5° / 80° | 79° / 79.5° | 78.5° / 79° | 78° / 78.5° |
| HA | 62.5° / 63° | 62.5° / 63° | 62.5° / 63° | 62.5° / 63° |
| TT (MM) | 559 / 558 | 587 / 585 | 620 / 618 | 652 / 651 |
| REACH (MM) | 445 / 450 | 465 / 470 | 490 / 495 | 515 / 520 |
| CS (MM) | 425 / 421 | 430 / 426 | 435 / 431 | 440 / 436 |
| WB (MM) | 1232 / 1229 | 1262 / 1259 | 1297 / 1293 | 1331 / 1328 |
| BBH (MM) | 345 / 352 | 345 / 352 | 345 / 352 | 345 / 352 |
| SOH (MM) | 720 / 726 | 720 / 726 | 720 / 726 | 720 / 726 |
| STACK (MM) | 618 / 613 | 626 / 623 | 635 631 | 644 / 640 |
| HT (MM) | 95 | 105 | 115 | 125 |
| RIDER HEIGHT (CM) | 160-170 | 169-179 | 178-188 | 187-198 |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Fox 38 Performance Elite Grip2 180 | 44 Offset |
| Hubs |
Front: Factor XD601SB/A | 6bolts | TA 15x110mm Rear: Factor XDH62SB/A | 6bolts | TA 12x157mm | XD |
| Rims | RaceFace ARC30 | 30mm inner | TR |
| Stem | RaceFace Turbine R35 | B:35mm | L:40mm | 0° |
| Chain | Shimano M7100 | 12s |
| Tires |
Front: Maxxis Minion DHF | 29x2.5WT | 3C | Exo+ | TR | MaxxTerra Rear: Maxxis Minion DHRII | 29x2.4WT | 3C | DD | TR | MaxxTerra |
| Brakes | SRAM G2 RE | 4 Pistons |
| Rotors | SRAM Centerline | 200mm |
| Saddle | SDG FLY RL |
| Spokes | Sapim Stainless 14G w/Nylok |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Crankset | Shimano XT M8130-1 | 32T | SuperBoost 157 |
| Seatpost | SDG Tellis 34.9mm |
| Shifters | SRAM GX Eagle | 12s |
| Handlebars | RaceFace Next R35 | B:35mm | R:20mm | W:800mm |
| Rear Shock | Fox DHX2 | 225x70 |
| Tape/Grips | Devinci Performance | w/lock-on |
| Bottom Bracket | Shimano MT801 | BSA | 68/73mm |
| Rear Derailleur | Shimano XT M8100 | 12s |
| Cassette/Freewheel | Shimano XT M8100 | 12s | 10-51T | Microspline |
* Subject to change without notice.
